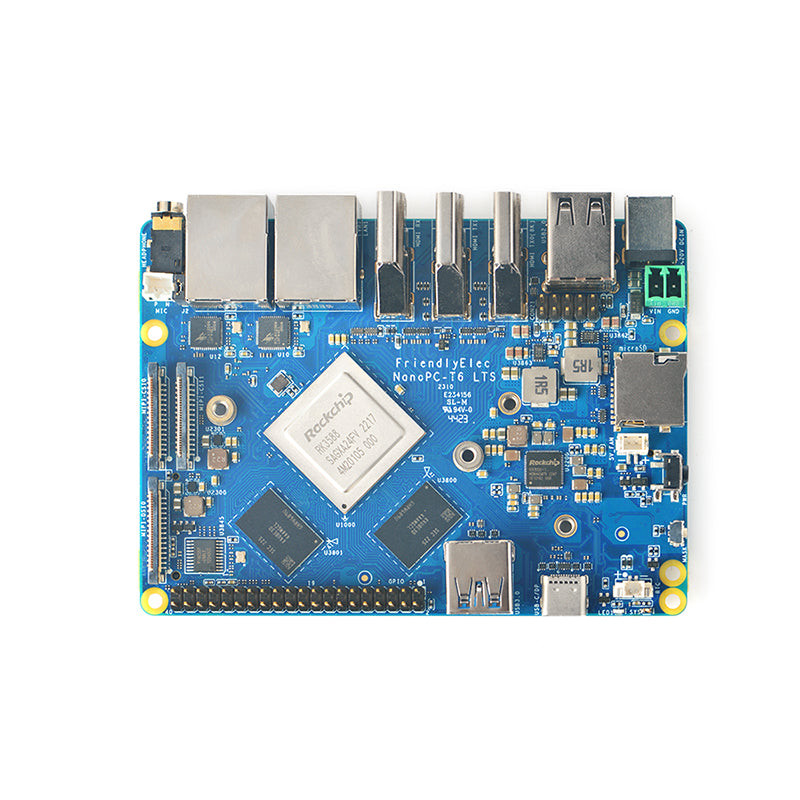

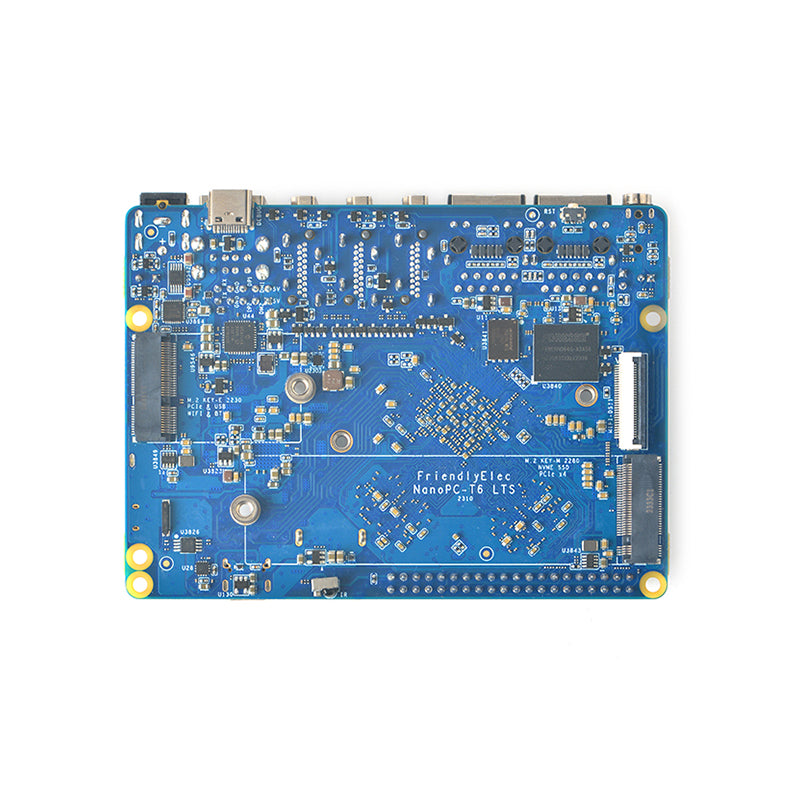

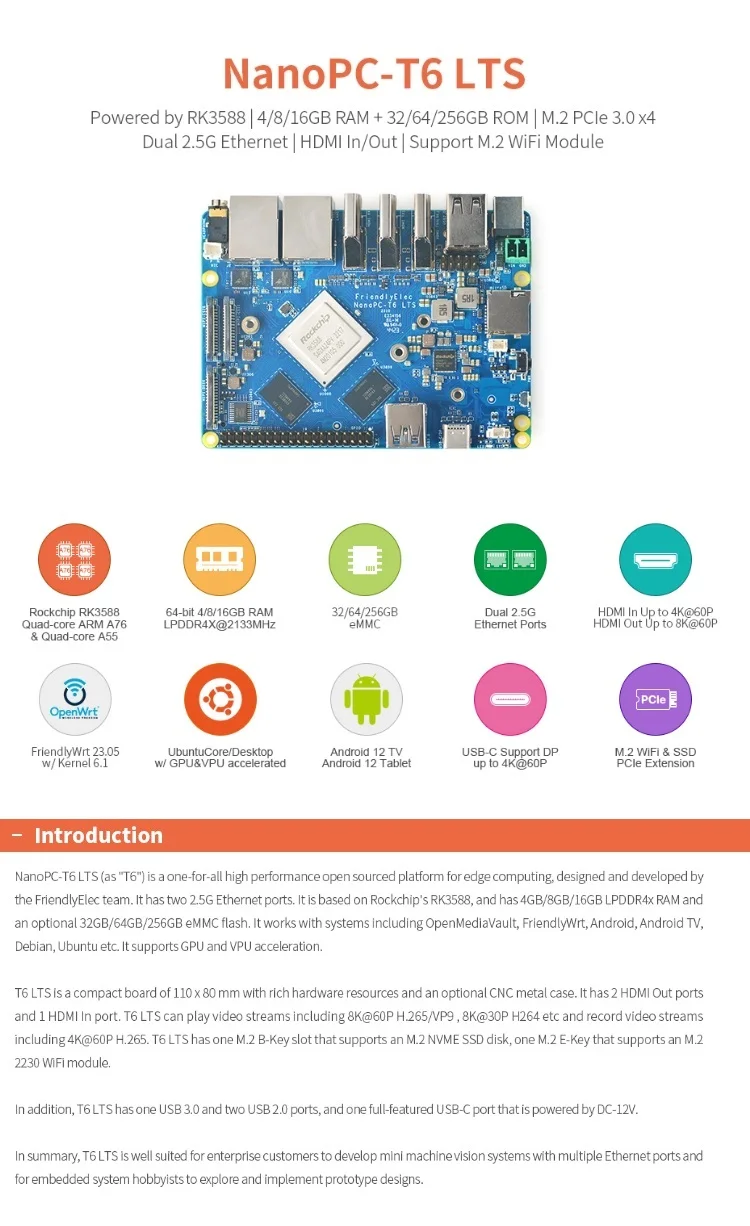

NanoPC-T6 LTS WiFi Router Rockchip RK3588 CPU 6Tops NPU 2.5G Dual Ethernet Ports Development Board for AI Edge Computing
Description
|
Specifications
|
|
|
CPU
|
Model: Rockchip RK3588
Number of Cores: Quad-core Cortex-A76 + Quad Core Cortex-A55 Frequency: Cortex-A76(up to 2.4GHz), Cortex-A55(up to 1.8GHz) |
|
GPU
|
Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
|
|
VPU
|
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
|
|
NPU
|
6TOPs, supports INT4/INT8/INT16/FP16
|
|
Memory
|
RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
|
|
Storage
|
eMMC:0GB/32GB/64GB/256GB, at HS400 mode

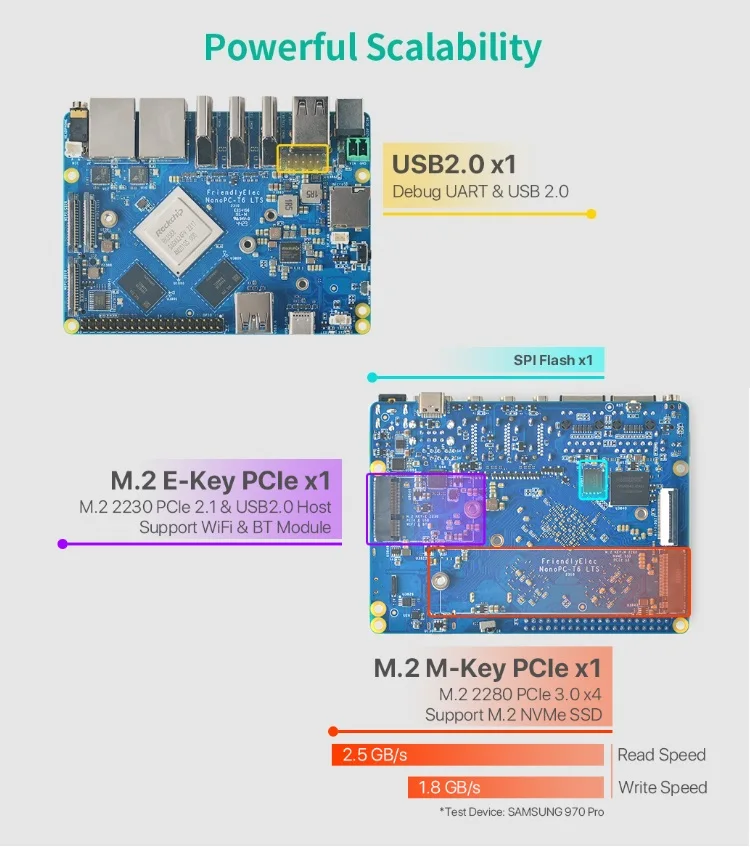

1 x Mi cro SD Slot: support up to SDR104 mode PCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/s Onboard M3 PCB nut for mounting M.2 2280 module |
|
Connectivity
|
Ethernet: 2 x PCle 2.5G Ethernet, RTL8125BG chip

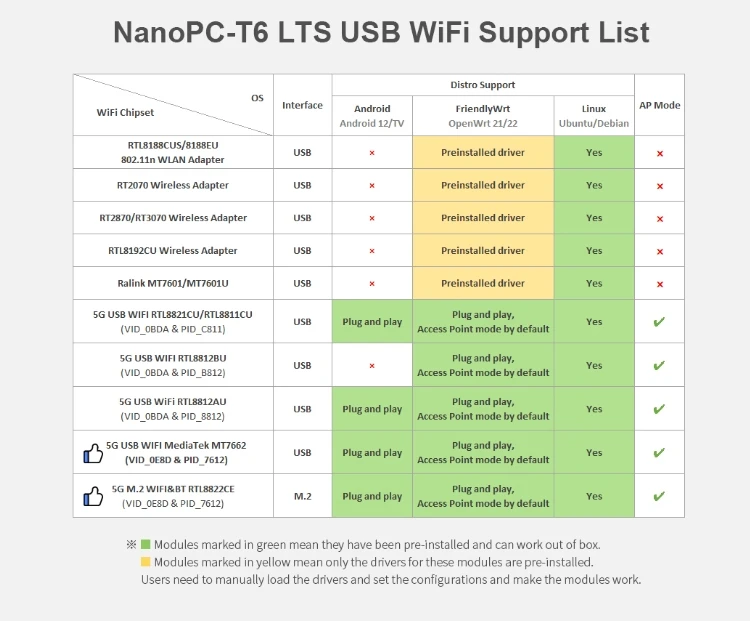

PCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and BT Module Onboard M3 PCB nutfor mounting M.2 2230 module |
|
Audio
|
Audio Out: 3.5mm jack for stereo headphone output
Audio ln: 2.0mm PH-2A connector for analog microphone input |
|
Video Input
|
1 x Standard H D M I input port, up to 4Kp60
2 x 4-lane MIPI-CSI, compatible with MIPI V1.2 |
|

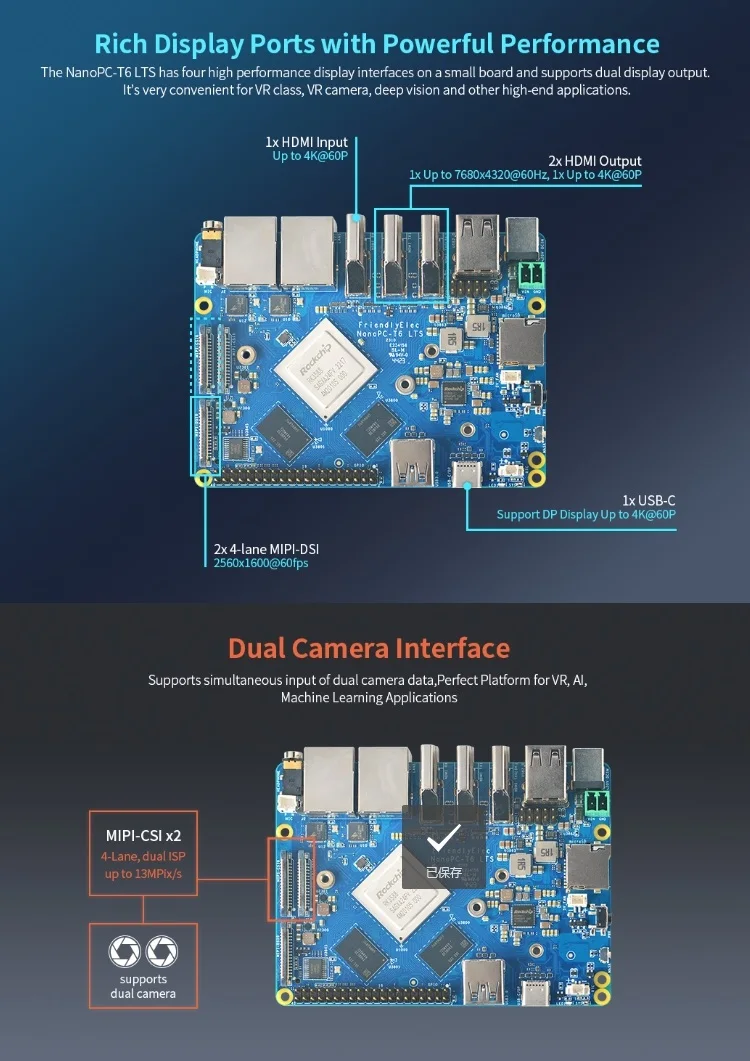

Video Output
|
2 x Standard H D M I output ports:
compatible with H D M I2.1, H D M I2.0, and H D M I1.4 operation one support displays up to 7680x4320@60Hz, another one support up to 4Kp60 Support RGB/YUV(up to 10bit) format 2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1 |
|
USB
|
2 x USB 2.0,Type-A
1 x USB 3.0,Type A 1 x USB-C: Full function USB Type-C™ port, support DP display up to 4Kp60, USB 3.0 |
|
Pin-header
|
GPIO: 40-pin 2.54mm header connector
up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOs GPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host |
|
User Key
|
1 x MASK Button for eMMC update
1 x Reset Button 1 x Power Button |
|
LED
|
1 x SYS LED(Red)
1 x LED1(Green) |
|
Others
|
IR receiver: Onboard IR receiver, Acceptes 38KHz carrier frequency
RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Fan: 5V Fan connector Working Temperature: 0℃ to 70℃ |
|
Power
|
5.5*2.1mm DC Jack & 2-Pin 3.5mm pitch connector, 12VDC input
*Running at full load, a 65W power supply recommended |
|
OS/Software
|
|
|

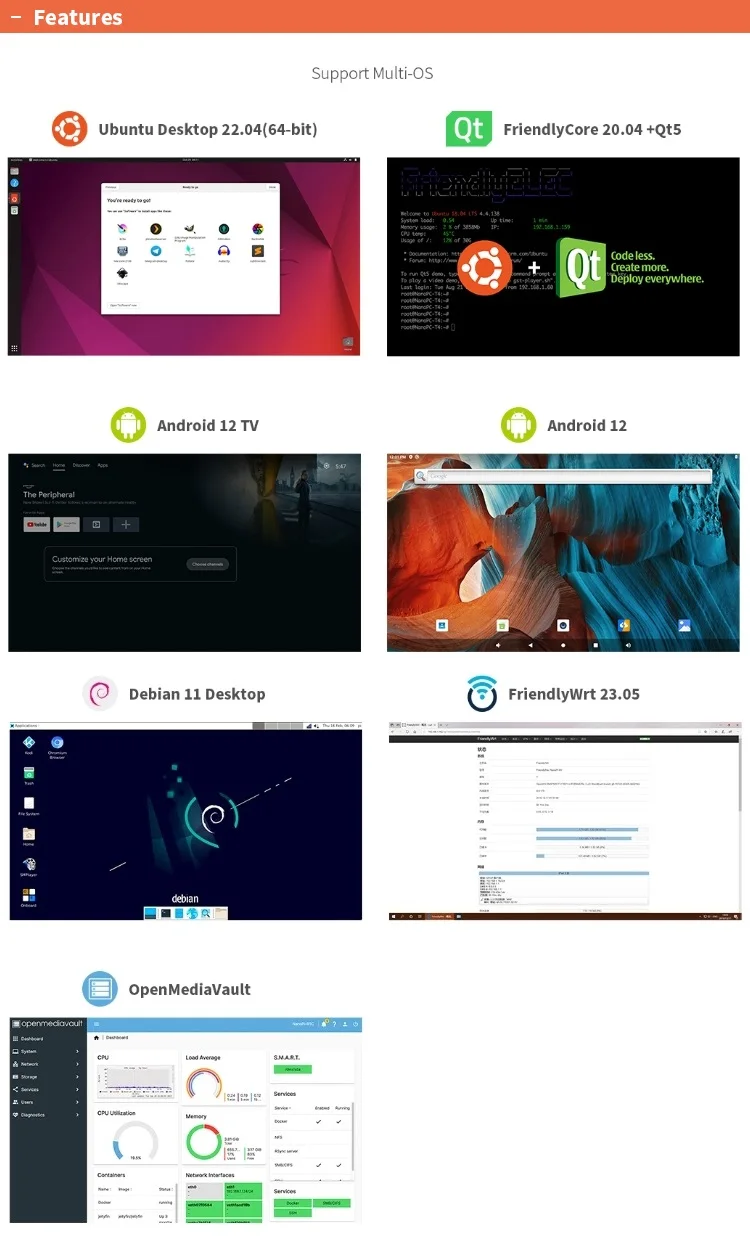

OS Support
|
FriendlyWrt 24.10
FriendlyWrt 23.05 OpenMediaVault Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 11 Desktop Ubuntu 22.04 Desktop Ubuntu 24.04 Desktop Proxmox VE Alpine-Linux |
|
Kernel version
|
Linux-6.1-LTS
U-boot-2017.09 |
|
Dimension
|
|
|
PCB
|
8 Layer
|
|
Weight
|
91.5g(without Case) / 390g(with Case)
|
|
Dimension
|

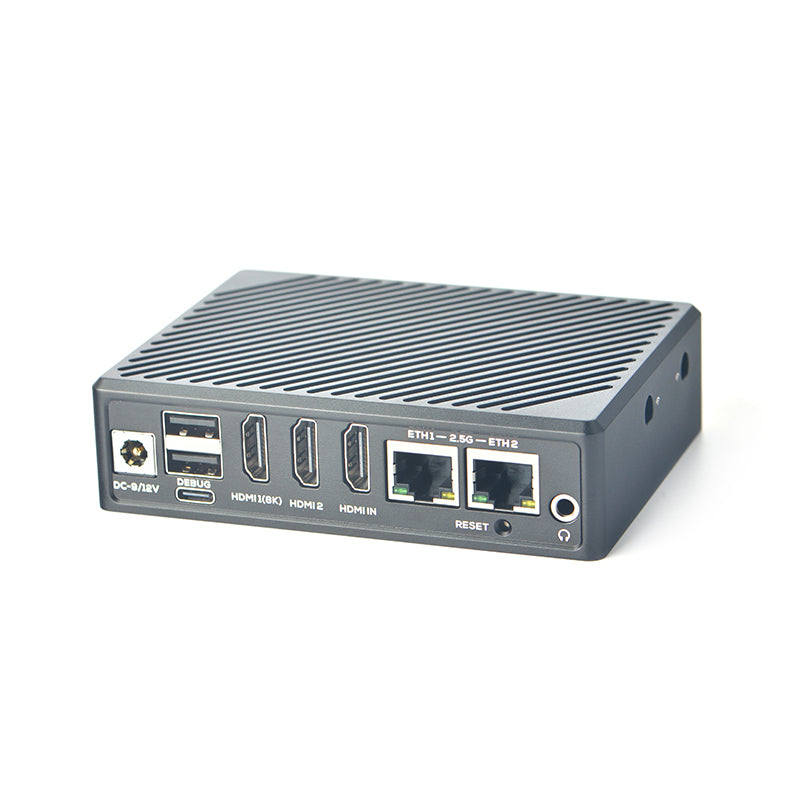

110x80x1.6mm(without Case)/ 86x114.5x30mm(with Case)
|

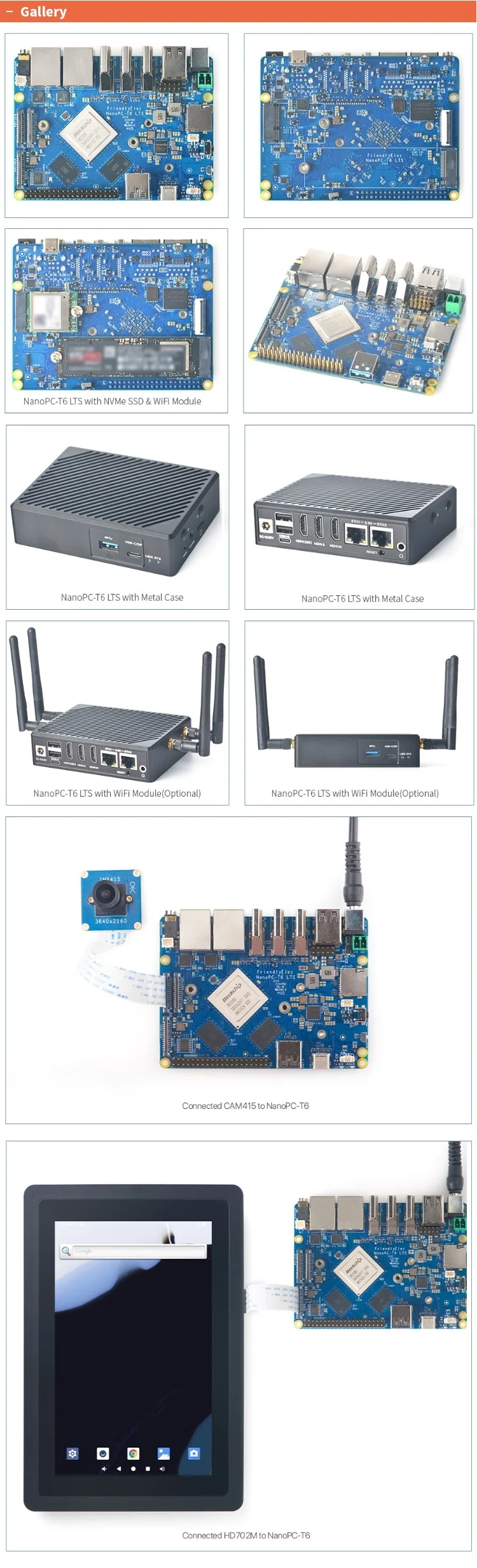

Pictures show

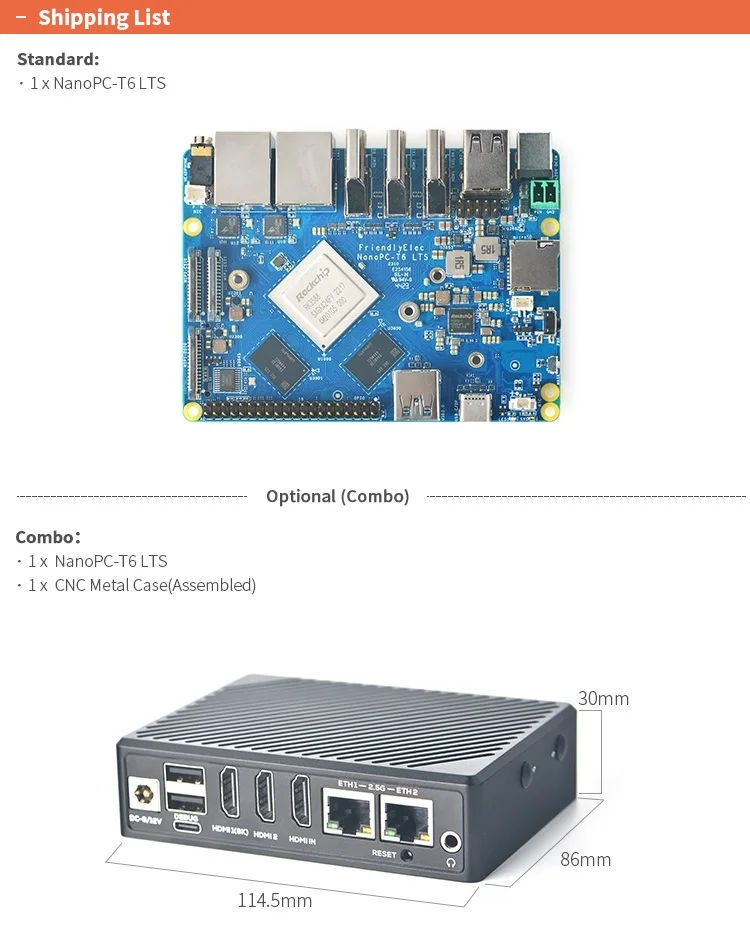

Packing List
