NanoPi NEO3 LTS 1GB/2GB DDR4 RK3328 Cortex A53 Quad-core 64-bi Support Ubuntu Core Upgrade of Nanopi NEO2 Mini Development Board
Product Introduction
Specifications:
|
Hardware Spec
|
|
|
CPU
|
Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53 64-bit Frequency: 4 x Cortex-A53 Up to 1.3GHz |
|
Memory
|
RAM: 1GB/2GB 32-bit DDR4
|
|
Storage
|
Mi.cro.SD Slot: MicroSD x1 for external storage up to 128GB
|
|
Connectivity
|
Ethernet: Gbps Ethernet x1 with unique MAC
|
|
USB
|
USB 3.0 Host x1: USB Type A
USB 2.0 Host x2: 2.54mm 4x2pin-header Type-C x1: Power Input Only |
|
Pin-header
|
GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO
Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps |
|
LED
|
PWR LED(Red) x1
STAT LED(Green) x1 |
|
Button
|
User button x1
|
|
Working Temperature
|
-20℃ to 70℃
|
|
Power
|
5V/1A, via Type-C or GPIO
|
|
OS/Software
|
|
|
OS Support
|
FriendlyWrt 21.02.1 (64-bit)
FriendlyWrt 23.05 OpenMediaVault FriendlyCore Focal Lite (Base on Ubuntu 20.04) |
|
Dimension
|
|
|
PCB
|
6 Layer
|
|
Weight
|
22g
|
|
Dimension
|
48 x 48mm mm(without Case) / 54 x 54 x 38mm mm(with Case)
|
|
Weight
|
22g（without Case) / 58g（with Case)
|
|
Certification
|
FCC,CE
|

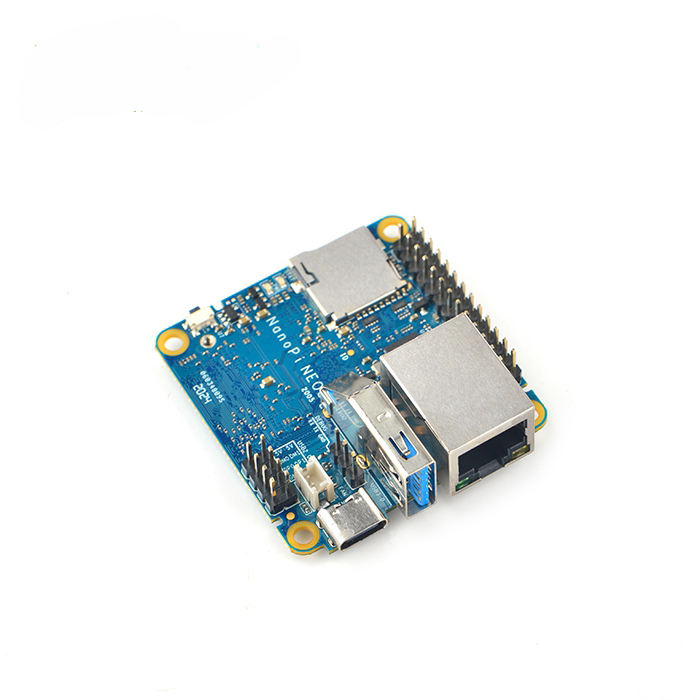

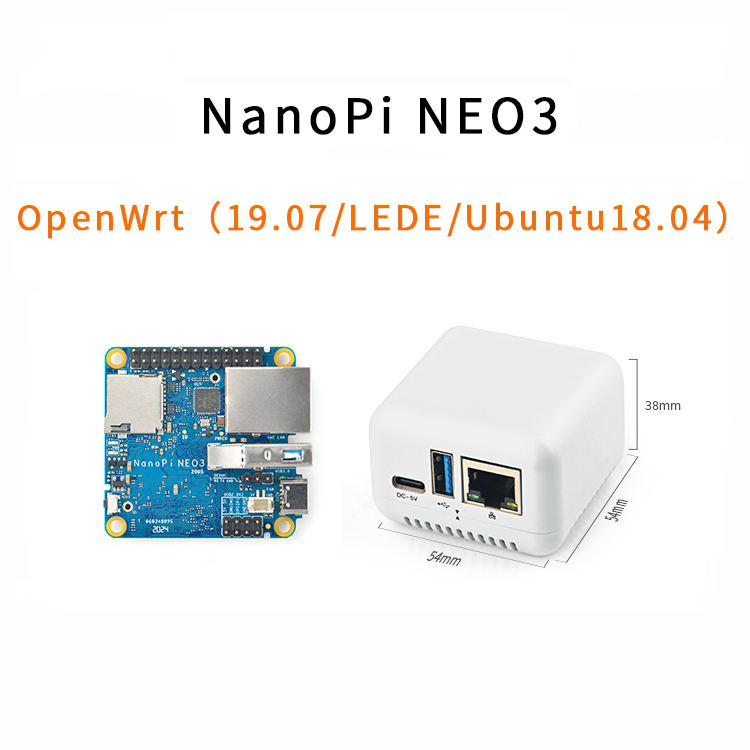

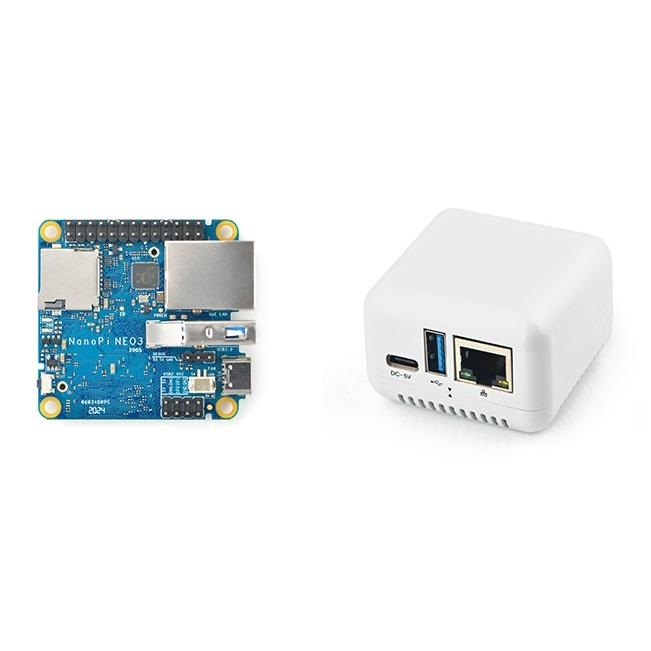

Product Pictures
Packing List
