Orange Pi RV2 RISC-V AI Single Board Computer 2 TOPS NPU WiFi+BT5.0 Gigabit Ethernet SBC M2 NVMe SSD Development Board
Product Introduction

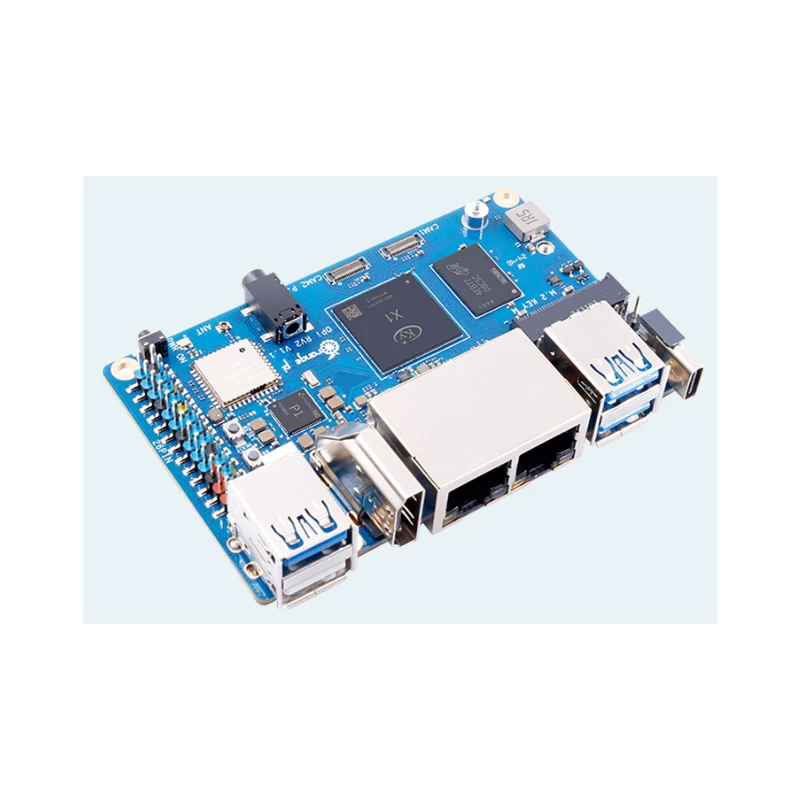

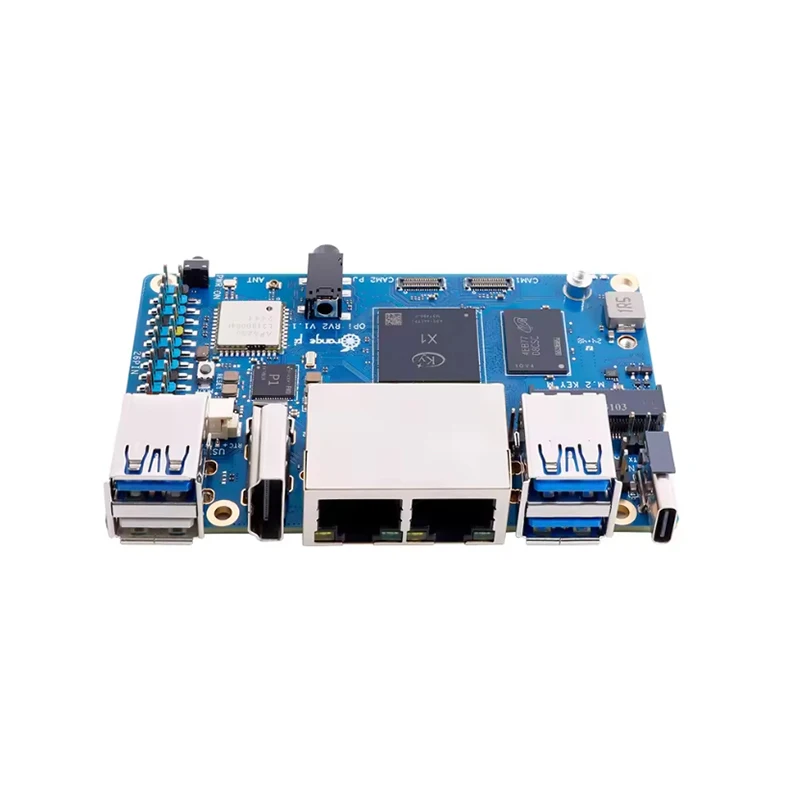

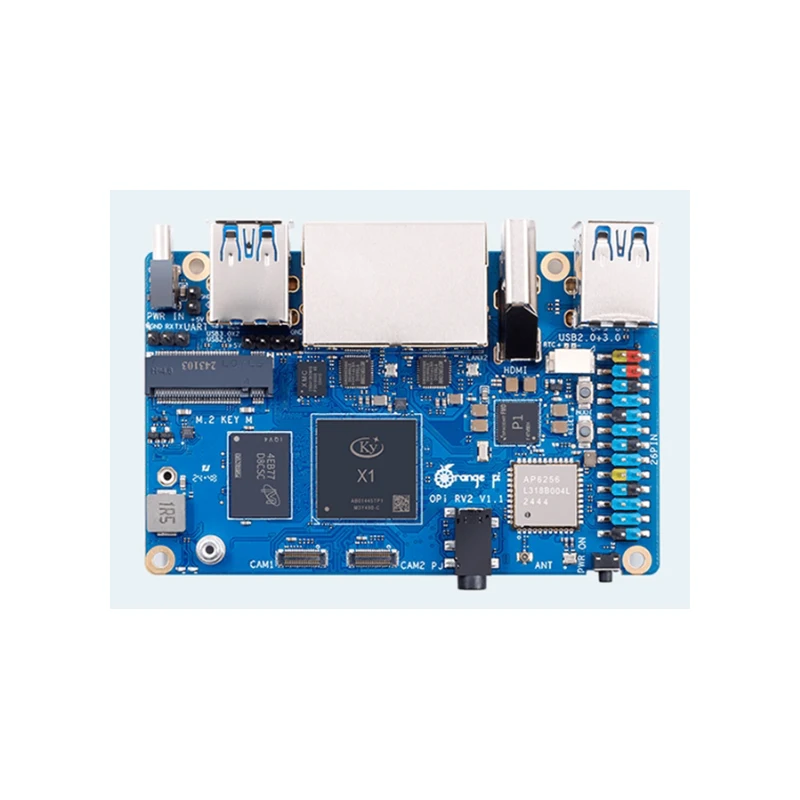

OrangePi RV2 is a cost-effective RISC-V development board with Ky X1 8-core RISC-V AI CPU, providing 2TOPS CPU fusion of general-purpose computing power to support rapid deployment of AI model algorithms. It has 2GB / 4GB / 8GB LPDDR4X, supports eMMC module (16GB/32GB/64GB/128GB optional), has Wi-Fi 5.0 + BT 5.0, with BLE support.

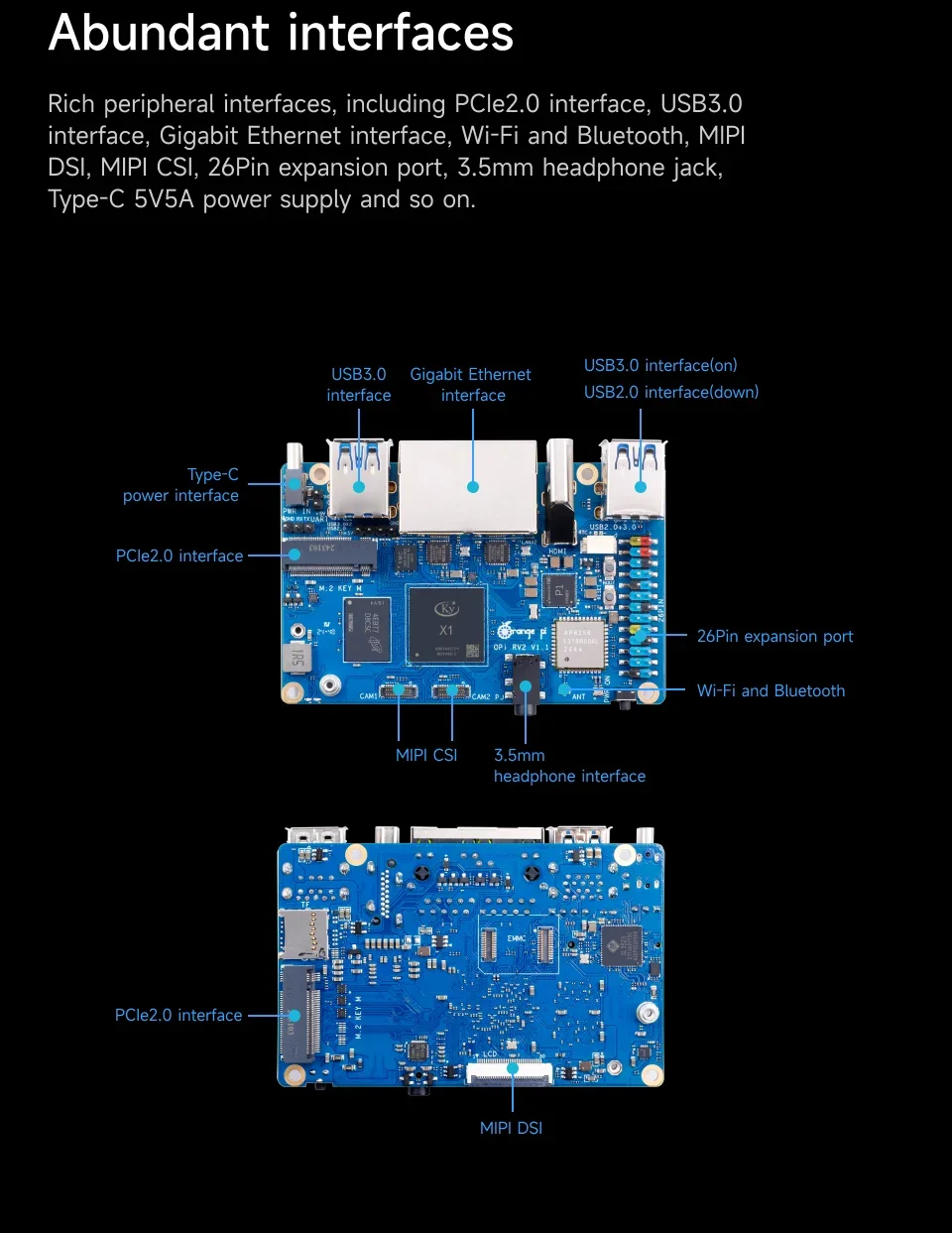

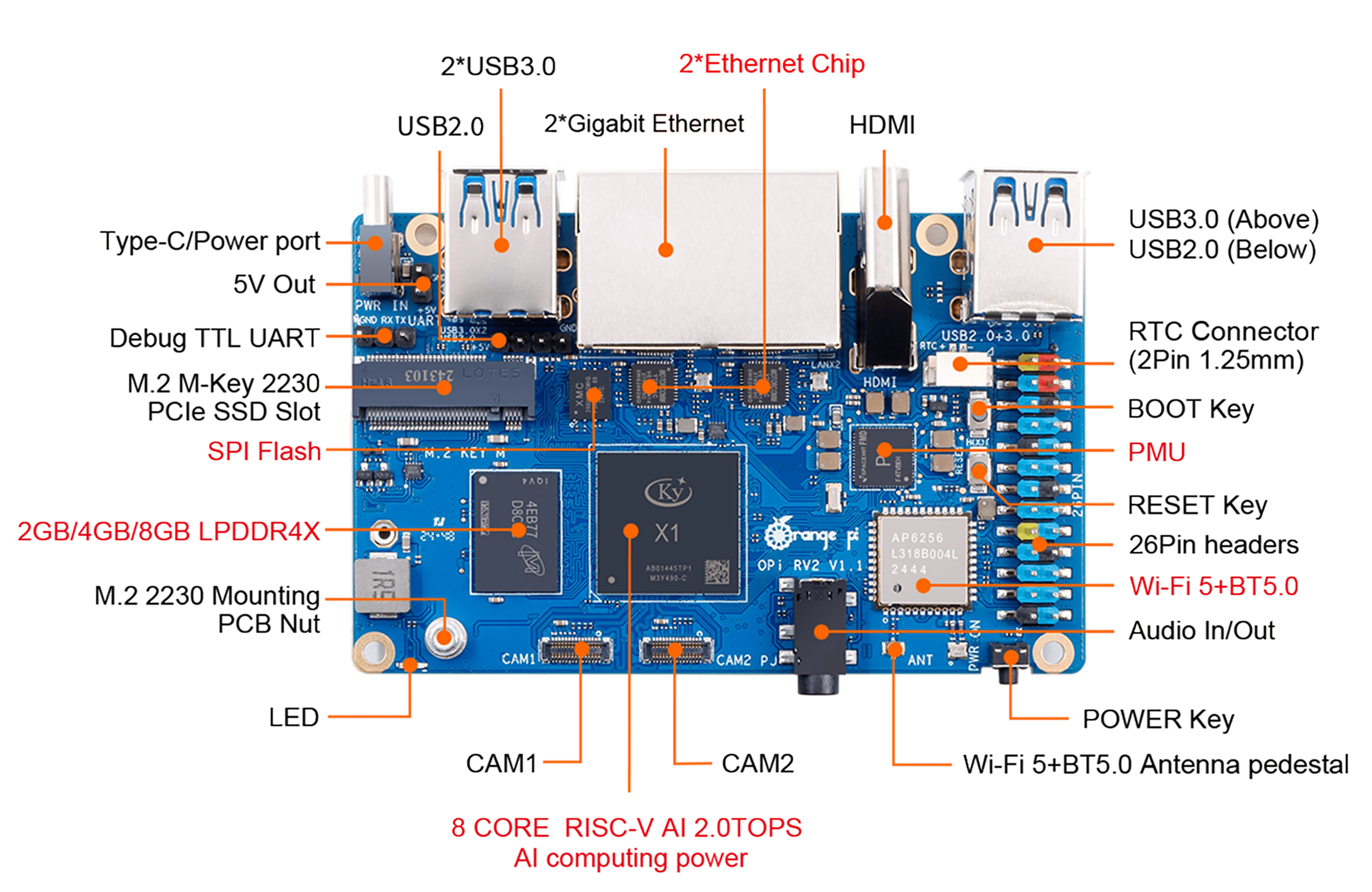

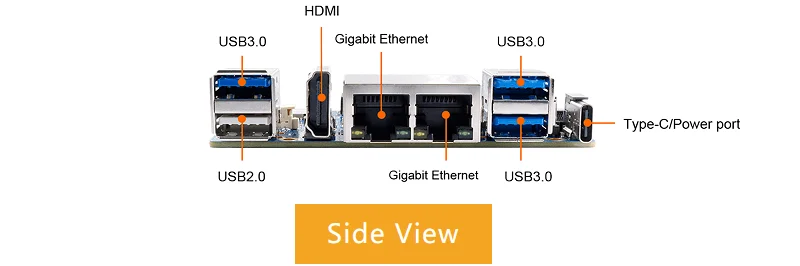

OrangePi RV2 has a rich set of interfaces, including H D M I output, GPIO port, USB2.0, USB3.0, Gigabit LAN port, 3.5mm headphone socket, equipped with two M.2 M-Key slots (PCIe 2.0 2-Lane), supporting for the installation of NVMe SSDs.
OrangePi RV2 is exquisite and compact, measuring only 89mmX56mmX1.6mm, with powerful functions, it can be widely used in NAS, commercial electronics, smart robotics, smart home, industrial control, edge computing and so on.
OrangePi RV2 supports Ubuntu 24.04 and is deeply adapted to DeepSeek to help users quickly realize a range of AI convergence innovations.
|
CPU
|
Ky X1 8-core RISC-V AI CPU
2TOPS AI power |
|
Memory
|
LPDDR4X: 2GB/4GB/8GB optional
|
|
Storage
|

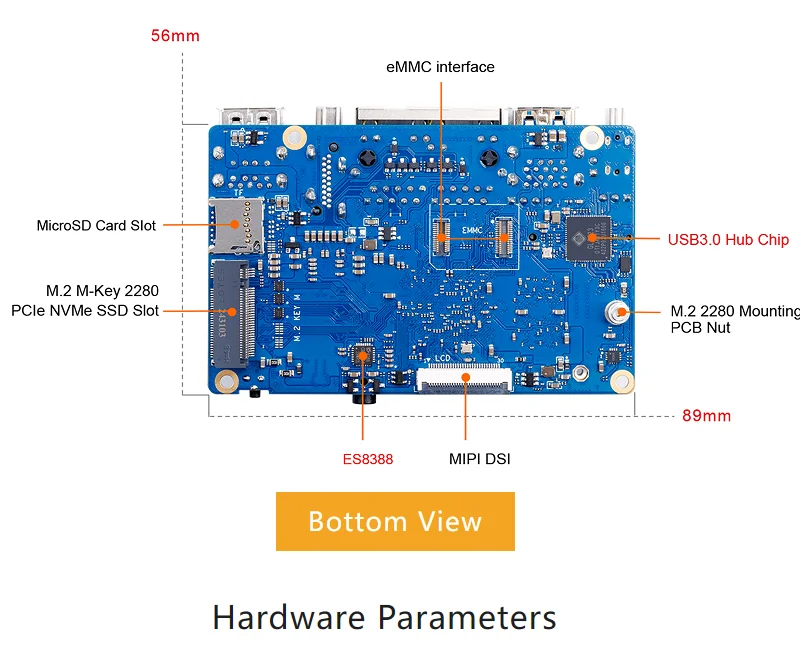

eMMC module (optional): 16GB/32GB/64GB/128GB optional
SPI FLASH: 128Mb (default), 256Mb optional 2*M.2 M-Key SOCKET: PCIe2.0 2 Lane NVMe SSD TF Card: Supports SDIO3.0 TF Card |
|
Wi-Fi + BT
|
Wi-Fi + BT 2-in-1 Module: AP6256
Wi-Fi5.0+BT 5.0, BLE |
|
Ethernet interface
|
2* Gigabit Ethernet, PHY Chip: YT8531C-CA
|
|
Display
|
Supports dual-screen heterodyne display, up to 1920*1440@60fPS
1* H D M I2.0 1* 4-lane MIPI DSI |
|
Camera
|
2x 4-lane MIPI CSI camera interface
|
|
USB
|
1*USB2.0 HOST or DEVICE
3*USB3.0 HOST 1*USB2.0 HOST (4Pin header) |
|
Audio
|
3.5mm headphone jack audio input/output
HDMI audio output |
|
Buttons
|
1* BOOT, 1*RESET, 1 *PWR ON
|
|
RTC
|
2Pin spare battery connector (Pitch=1.25mm)
|
|
26Pin
|
26Pin function expansion interface, supports the following interface types:
GPIO, UART, I2C, SPI, PWM, etc. |
|
DEBUG
|
3Pin debug serial port, 3.3V level
|
|
Power input/output
|
Power connector: 2Pin. Maximum 5V 1A output , such as connecting the fan.
|
|
Power supply
|
Type-C 5V 5A DC IN
|
|
PCB size
|
89*56*1.6 mm
|
|
Supported OS
|
Ubuntu24.04
|
