Product Attributes |
|
| TYPE | DESCRIPTION |
| Category | |
| Mfr |
Microchip Technology
|
| Series | SmartConnect |
| Package | Tray |
| Product Status | Active |
| RF Family/Standard | WiFi |
| Protocol |
802.11b/g/n
|
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
|
| Frequency |
2.4GHz
|
| Data Rate |
72.2Mbps
|
| Power - Output | 18.5dBm |
| Sensitivity | -95dBm |
| Serial Interfaces | I²C, SPI, UART |
| Antenna Type | Integrated, Chip + U.FL |

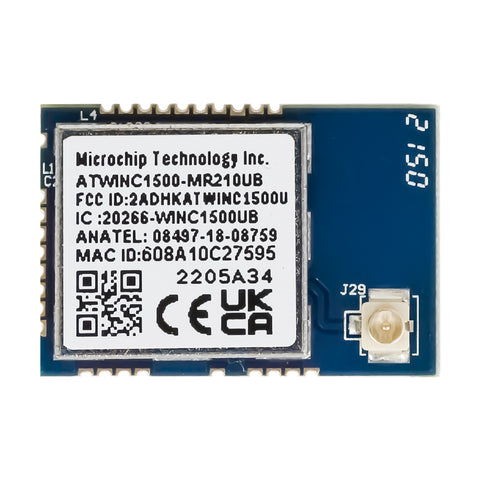

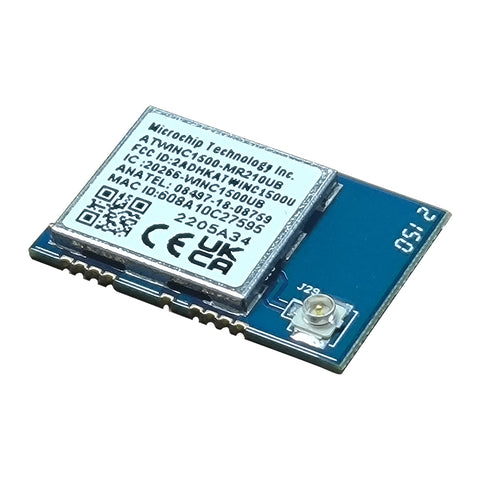

| Utilized IC / Part | ATWINC1500 |
| Memory Size | 4MB Flash, 128kB RAM |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Receiving | 61mA |
| Current - Transmitting | 265mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-SMD Module |
| Firmware Version | 19.5.4 |
| Base Product Number |
ATWINC1500 |
Environmental & Export Classifications |
|
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
