Raspberry Pi Compute Module 4, The power of Raspberry Pi 4 in a compact form factor, options for RAM / eMMC/ wireless
Product Introduction
|
Processor
|
Broadcom BCM2711 quad-core Cortex-A72 (v8) 64-bit SoC @ 1.5GHz
|
|
Memory
|
1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
|
|
Storage
|
0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant)
|
|
Connectivity
|
Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, BT 5.0, BLE with onboard and external antenna options
|
|
Onboard Gigabit Ethernet PHY supporting IEEE1588
|
|
|
1 × USB 2.0 interface
|
|
|
PCIe Gen 2 x1 interface
|
|
|
28 GPIO signals
|
|
|
SD card interface for SD card (for use only with Compute Module 4 variants without eMMC)
|
|
|
Video
|
Dual H D M I interface (up to 4Kp60 supported)
|
|
2-lane MIPI DSI display interface
|
|
|
2-lane MIPI CSI camera interface
|
|
|
4-lane MIPI DSI display interface
|
|
|
4-lane MIPI CSI camera interface
|
|
|
Multimedia
|
H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
|
|
Input power
|
5V DC
|
|
Operating voltage
|
-20°C ~ 85°C ambient
|
|

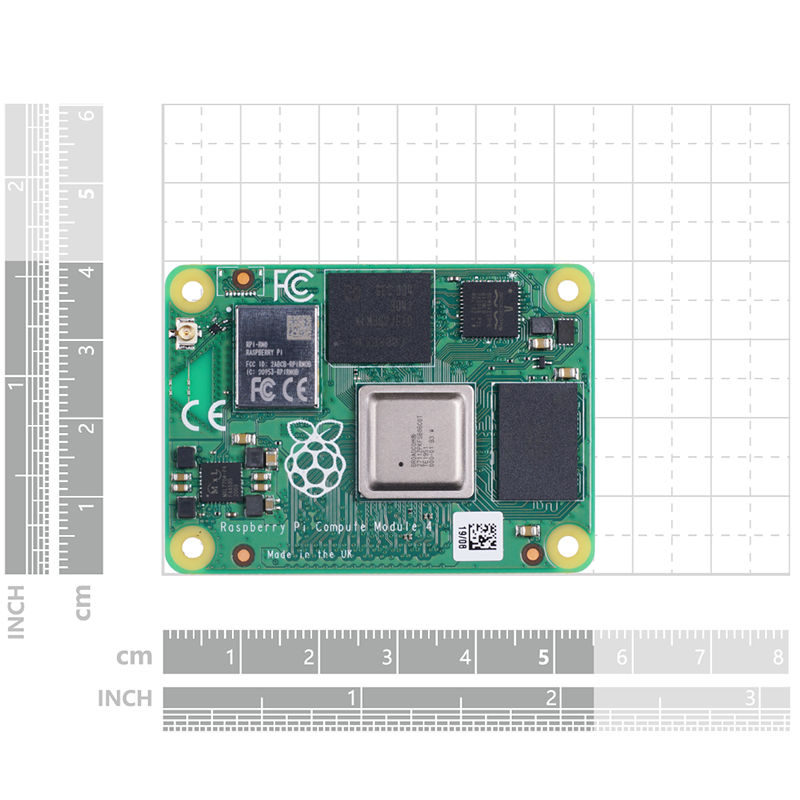

Dimensions
|
55 × 40 × 4.7mm
|
|
Model
|
Wireless
|
RAM
|
eMMC Flash
|
|
CM4
|
1 = Yes
0 = No
|
01 = 1GB
|
000 = 0GB (Lite)
|
|
02 = 2GB
|
008 = 8GB
|
||
|
04 = 4GB
|
016 = 16GB
|
||
|
08 = 8GB
|
032 = 32GB
|
||
|
Example: CM4104032, Compute Module 4 with onboard wireless, 4GB RAM, and 32GB eMMC Flash
|
|||
|
CM4
|
1
|
4
|
32
|
|
Wireless
|
RAM
|
eMMC Flash
|
Part Number
|
|
×
|
1GB
|
0GB (Lite)
|
CM4001000
|
|
×
|
1GB
|
8GB
|
CM4001008
|
|
×
|
1GB
|
16GB
|
CM4001016
|
|
×
|
1GB
|
32GB
|
CM4001032
|
|
×
|
2GB
|
0GB (Lite)
|
CM4002000
|
|
×
|
2GB
|
8GB
|
CM4002008
|
|
×
|
2GB
|
16GB
|
CM4002016
|
|
×
|
2GB
|
32GB
|
CM4002032
|
|
×
|
4GB
|
16GB
|
CM4004016
|
|
×
|
4GB
|
32GB
|
CM4004032
|
|
×
|
8GB
|
0GB (Lite)
|
CM4008000
|
|
×
|
8GB
|
32GB
|
CM4008032
|
|
PCB/ext
|
1GB
|
0GB (Lite)
|
CM4101000
|
|
PCB/ext
|
1GB
|
8GB
|
CM4101008
|
|
PCB/ext
|
1GB
|
16GB
|
CM4101016
|
|
PCB/ext
|
1GB
|
32GB
|
CM4101032
|
|
PCB/ext
|
2GB
|
0GB (Lite)
|
CM4102000
|
|
PCB/ext
|
2GB
|
8GB
|
CM4102008
|
|
PCB/ext
|
2GB
|
16GB
|
CM4102016
|
|
PCB/ext
|
2GB
|
32GB
|
CM4102032
|
|
PCB/ext
|
4GB
|
0GB (Lite)
|
CM4104000
|
|
PCB/ext
|
4GB
|
8GB
|
CM4104008
|
|
PCB/ext
|
4GB
|
16GB
|
CM4104016
|
|
PCB/ext
|
4GB
|
32GB
|
CM4104032
|
|
PCB/ext
|
8GB
|
8GB
|
CM4108008
|
|
PCB/ext
|
8GB
|
32GB
|
CM4108032
|

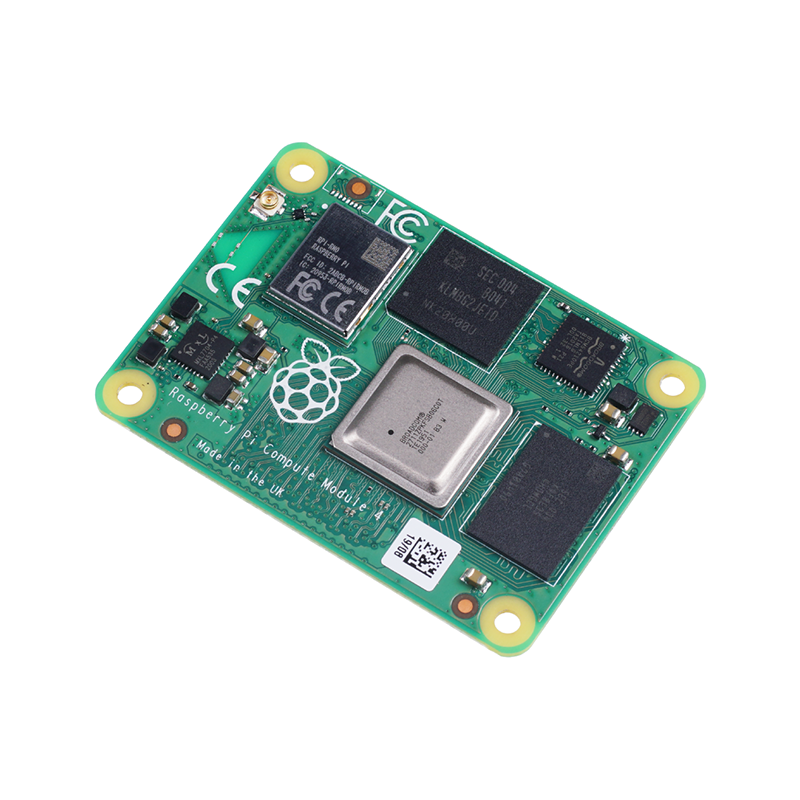

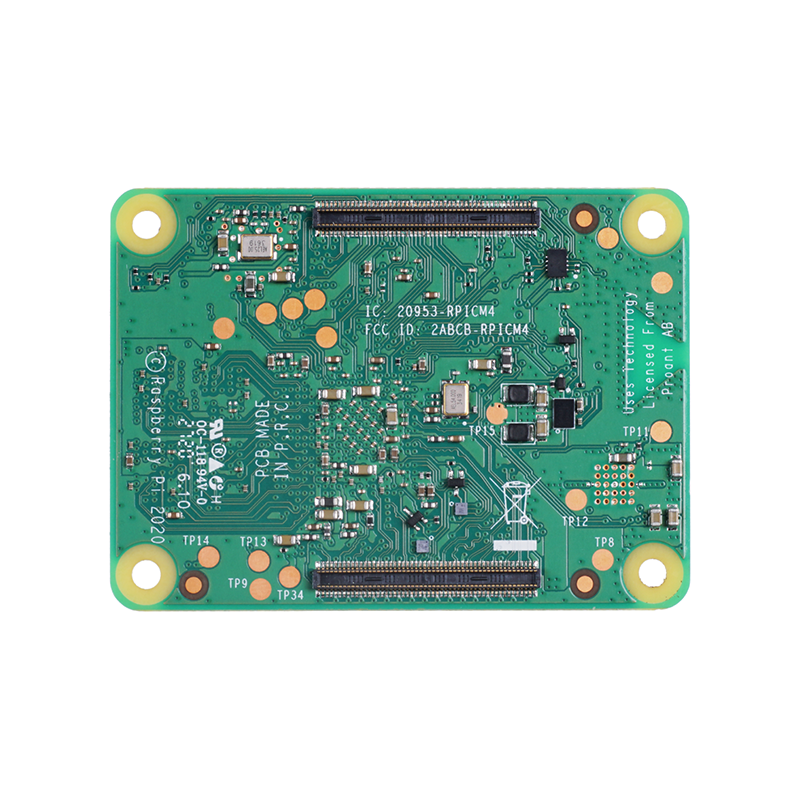

Product Pictures
