M5Stack ATOM Lite ESP32-PICO IoT Development Kit Embedded Smart IoT Hardware Programming Development Board
Product Introduction
Atom-Lite is a very compact development board in the M5Stack development kit series, with a size of only 24.0 x 24.0 mm, providing more GPIO for user customization, making it very suitable for embedded smart hardware development. The main controller uses the ESP32-PICO-D4 solution, integrates a Wi-Fi module, has a built-in 3D antenna, and features 4 MB of SPI flash, providing Infra-Red, RGB Led, button, and GROVE/HY2.0 interfaces. The onboard USB Type-C interface allows for quick program upload and download, and there is an M2 screw hole on the back for fixing.
Features:
* Based on ESP32 development
* Compact body
* Built-in infrared transmission function
* Programmable button
* RGB LED indicator
* Expandable pins and interfaces
* Development Platform * UiFlow1
* UiFlow2
* Ard IDE
* ESP-IDF
* PlatformIO
* Compact body
* Built-in infrared transmission function
* Programmable button
* RGB LED indicator
* Expandable pins and interfaces
* Development Platform * UiFlow1
* UiFlow2
* Ard IDE
* ESP-IDF
* PlatformIO
Applications:
* IoT nodes
* Microcontrollers
* Wearable devices
* Microcontrollers
* Wearable devices
Paraments:
|
Specification
|
Parameter
|
|
SoC
|
ESP32-PICO-D4,240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
|
|
Flash
|
4MB
|
|
Input Voltage
|
5V @ 500mA
|
|
Host Interface
|
Type-C x 1, GROVE(I2C+I/O+UART) x 1
|
|
PIN Interface
|
G19, G21, G22, G23, G25, G33
|
|
RGB LED
|
SK6812 3535 x 1
|
|
IR
|
IR transmitter
|
|
Button
|
Customizable button x 1
|
|
Antenna
|
2.4G 3D antenna
|
|
Operating Temp
|
0 ~ 40°C
|
|
Case Material
|
Plastic (PC) + ABS
|
|
Product Size
|
24.0 x 24.0 x 9.5mm
|
|
Product Weight
|
5.5g
|
|
Package Size
|
81.0 x 65.0 x 13.0mm
|
|
Gross Weight
|
10.9g
|

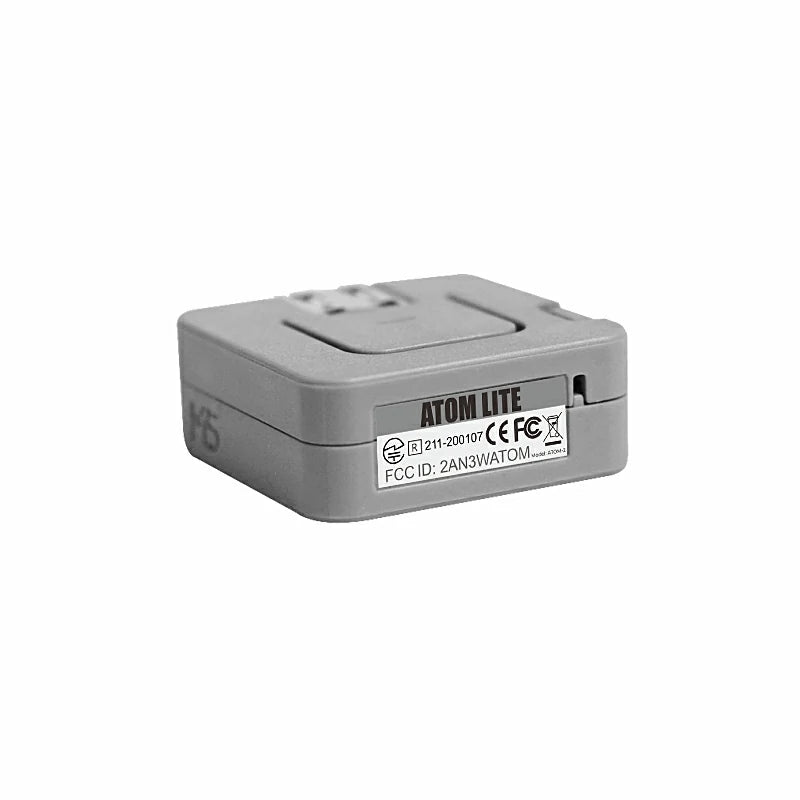

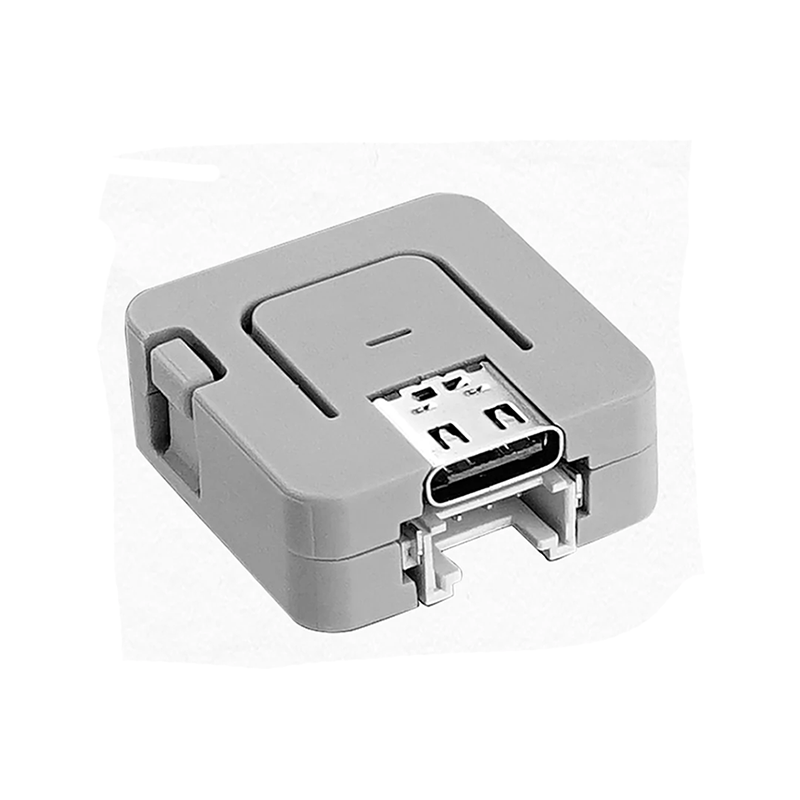

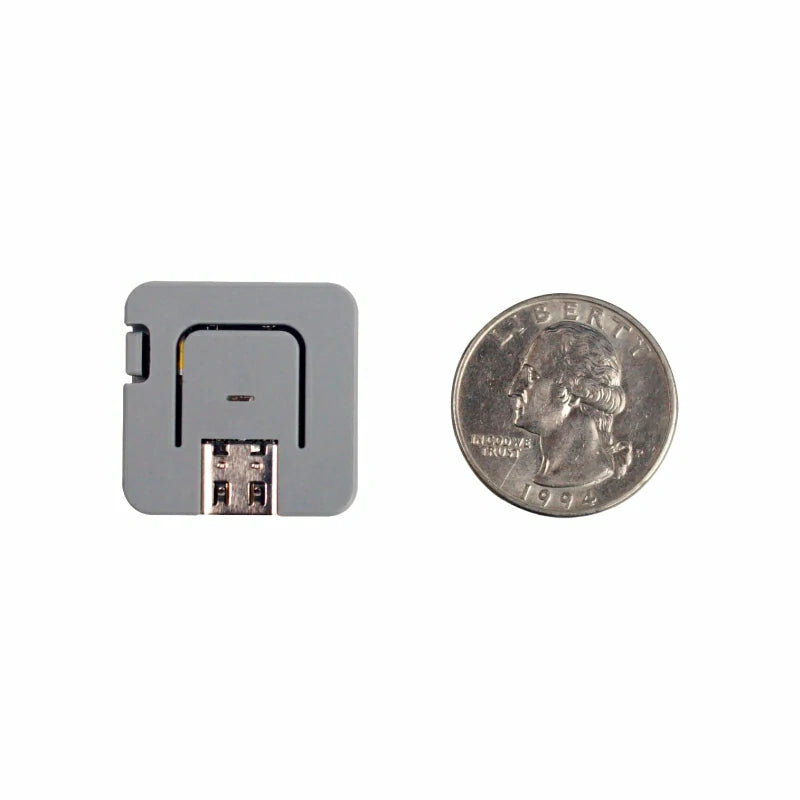

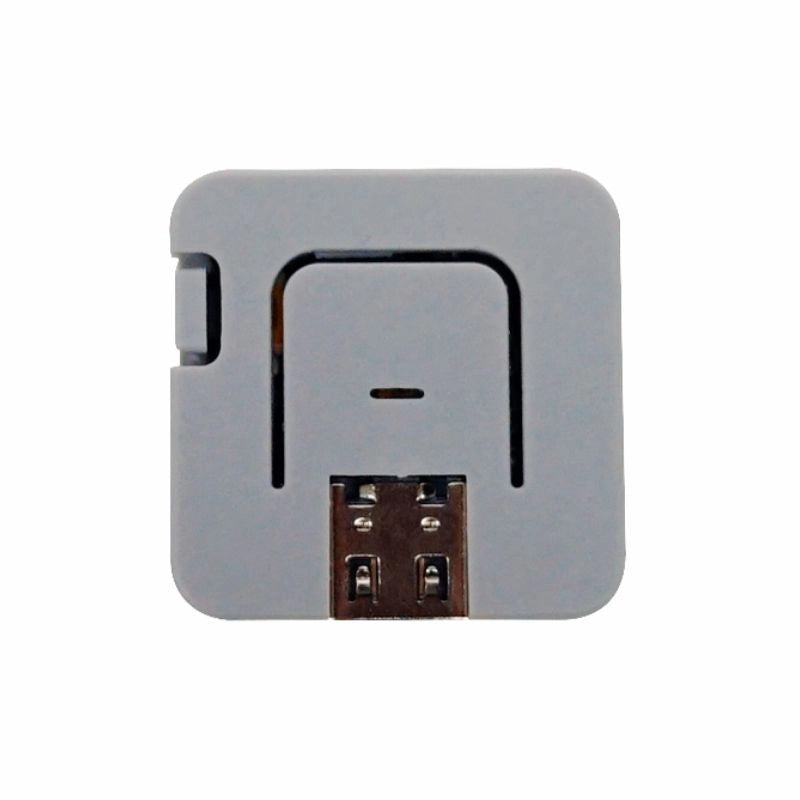

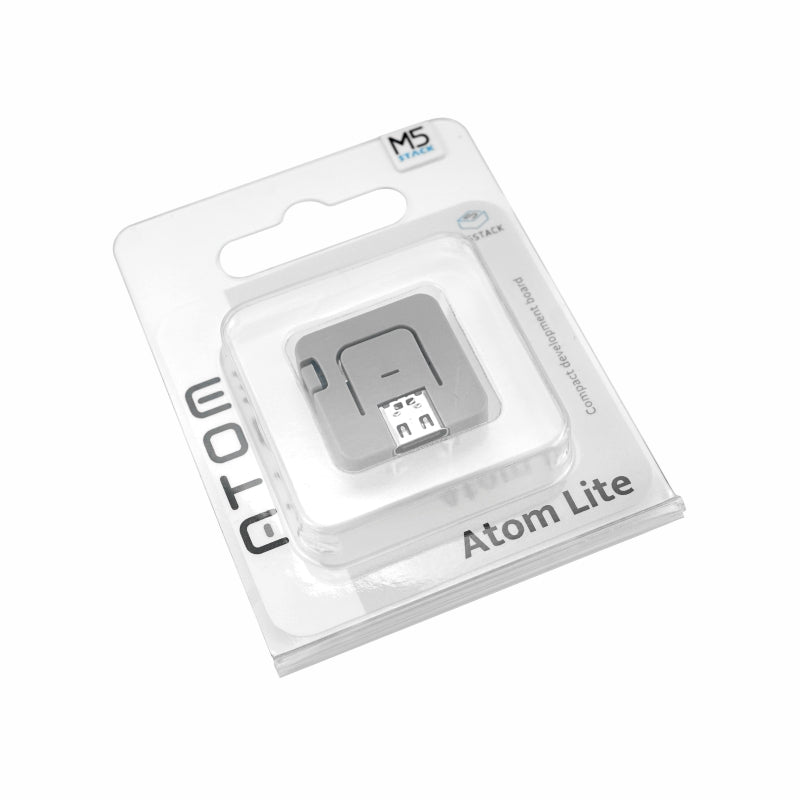

Product Pictures
