Nanopi R2S Plus Wireless WiFi Computer Router OpenWRT, Rockchip RK3328 Soc ,DDR4 1GB RAM 32GB eMMC, with Dual Gbps Ethernet M.2 WiFi Module Slot for Smart Home Office Gateway, Support Debian Ubuntu

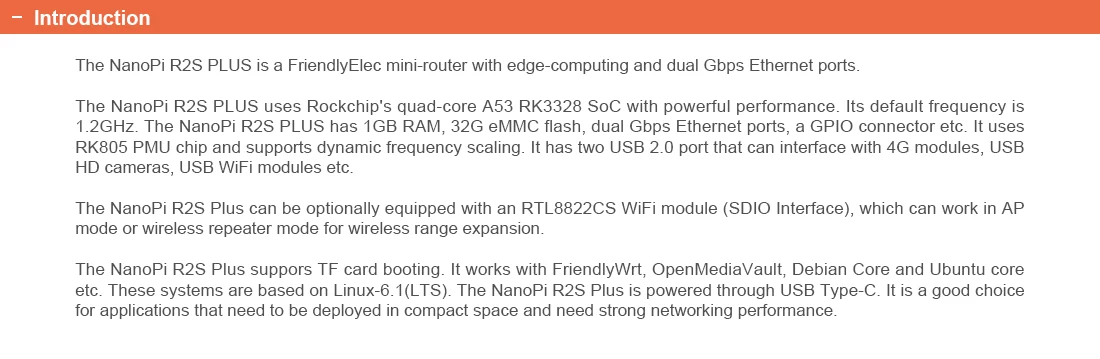

Product Introduction
|
Hardware Specification
|
|
|
CPU
|

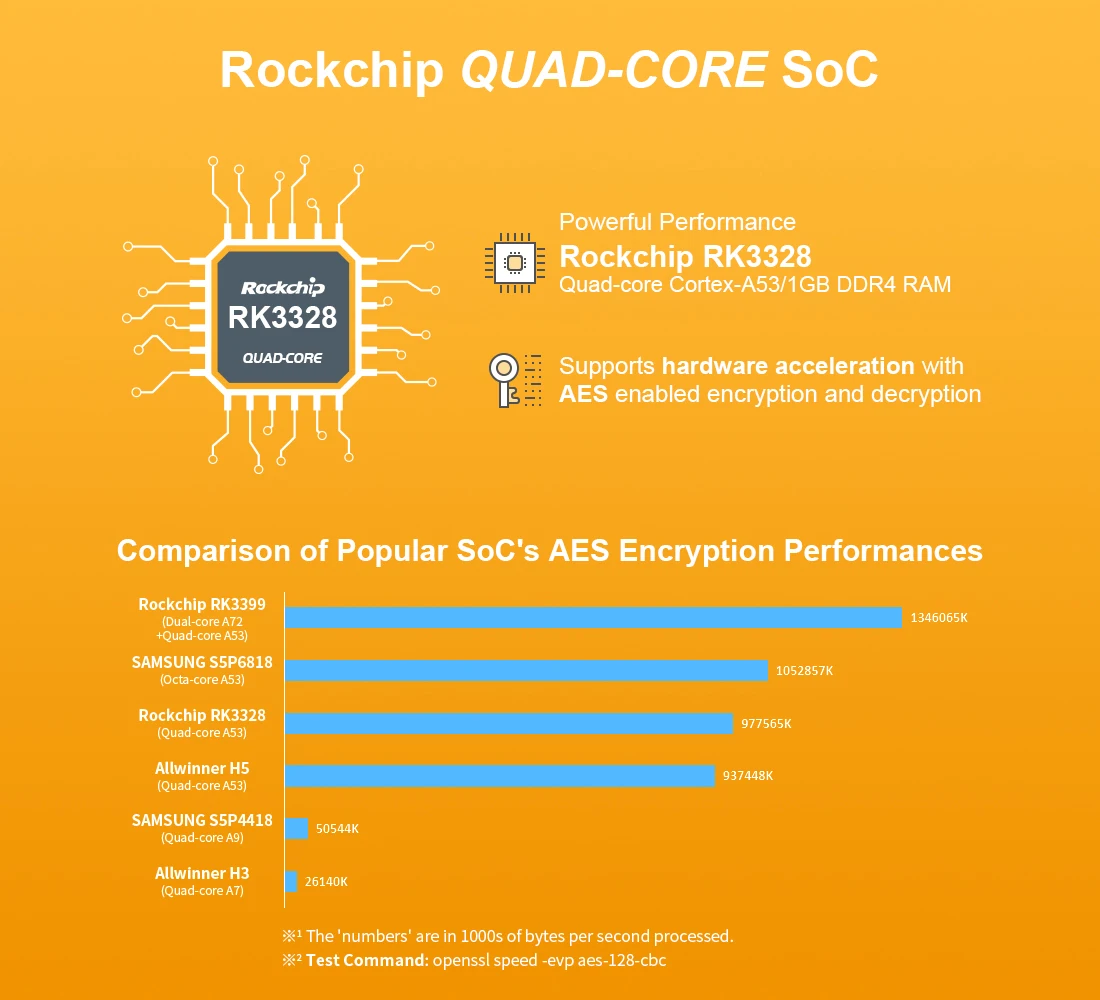

Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |
|
Memory
|
RAM: 1GB DDR4
|
|
Storage
|
M icro SD Slot: Mi cro SD x1 for external storage up to 128GB
Flash: 32GB eMMC 5.1 Flash |
|
Connectivity
|

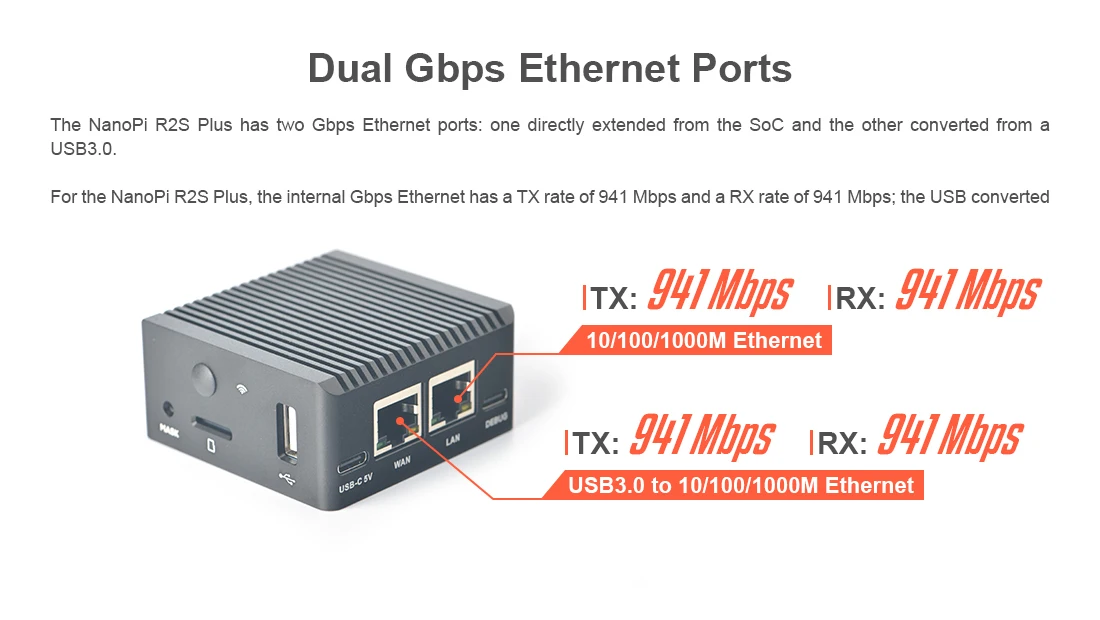

Ethernet: 1 x Internal Gbps Ethernet x 1，RTL8211F chip
1 x USB3.0 converted Gbps Ethernet.RTL8153B chip

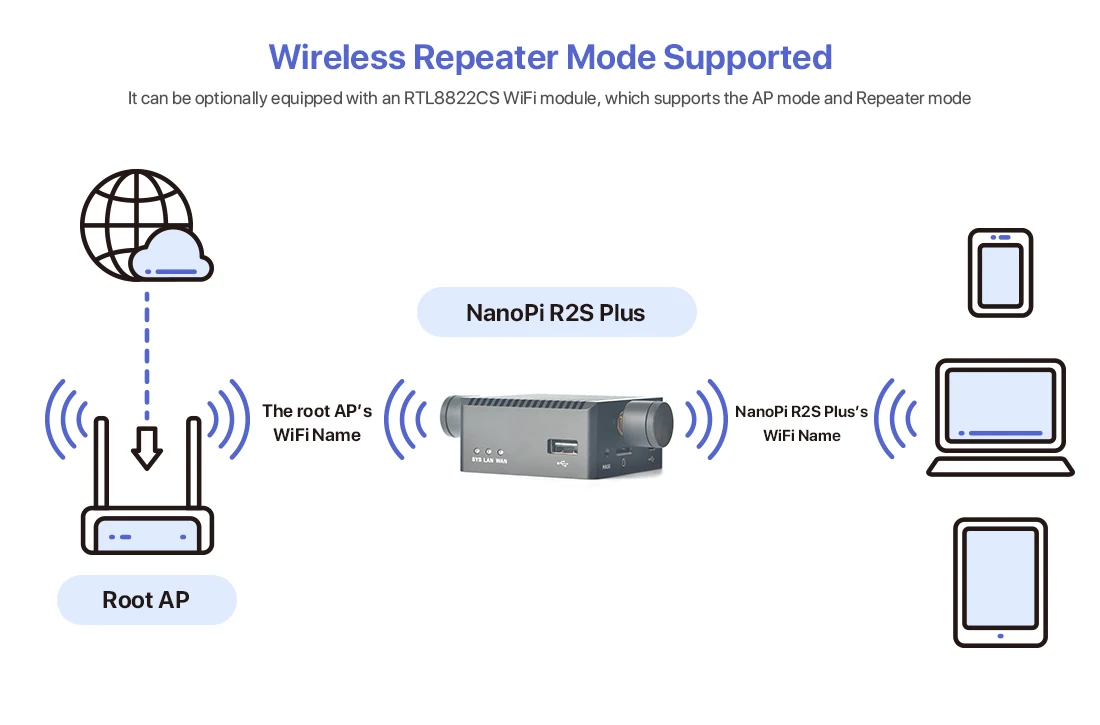

Optional M.2 SDIO Wi-Fi |
|
USB
|
2 x USB 2.0 Host
USB-C x 1:5V power input and USB update in maskrom mode USB-C x 1: onboard USB to Debug UART converter, 1500000bps bauds |
|
Pin-header
|
Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL)
|
|
LED
|
1 x SYS LED(Red)
1 x WAN LED(Green) 1 x LAN LED(Green) |
|
Button
|
1 x GPIO Button
1 x Maskrom mode Button |
|
Working Temperature
|
0℃ to 70℃
|
|
Power
|
DC 5V/2A
|
|
OS/Software
|
|
|
OS Support
|
FriendlyWrt 21.02
FriendlyWrt 23.05 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot Debian 11 Core OpenMediaVault |
|
Kernel version
|
Linux-6.1-LTS
U-boot-2017.09 |
|
Dimension
|
|
|
PCB
|
6 Layer
|
|
Weight
|
145g（With Case)
|
|

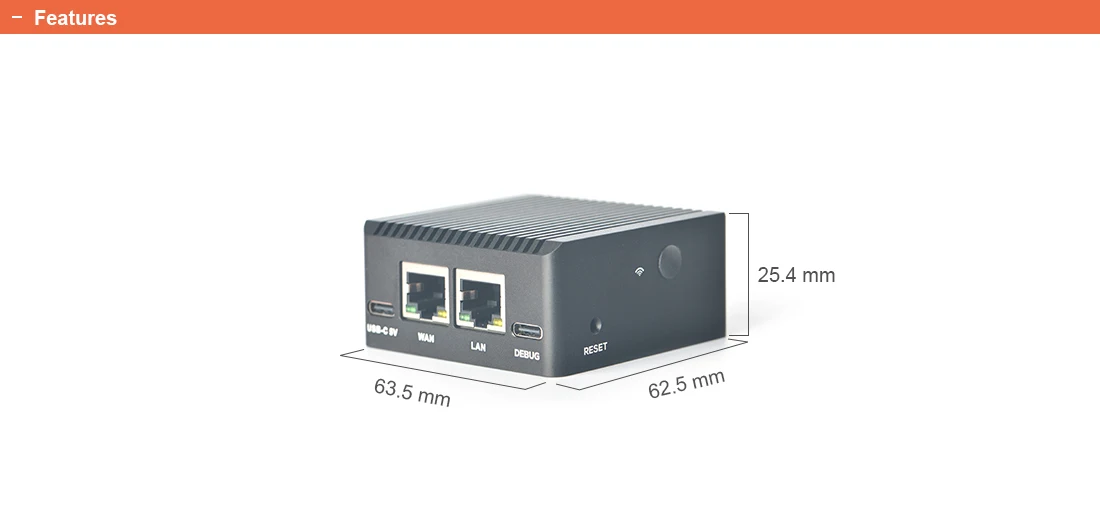

Dimension
|
62.5 x 63.5 x 30 mm(with Case)
|

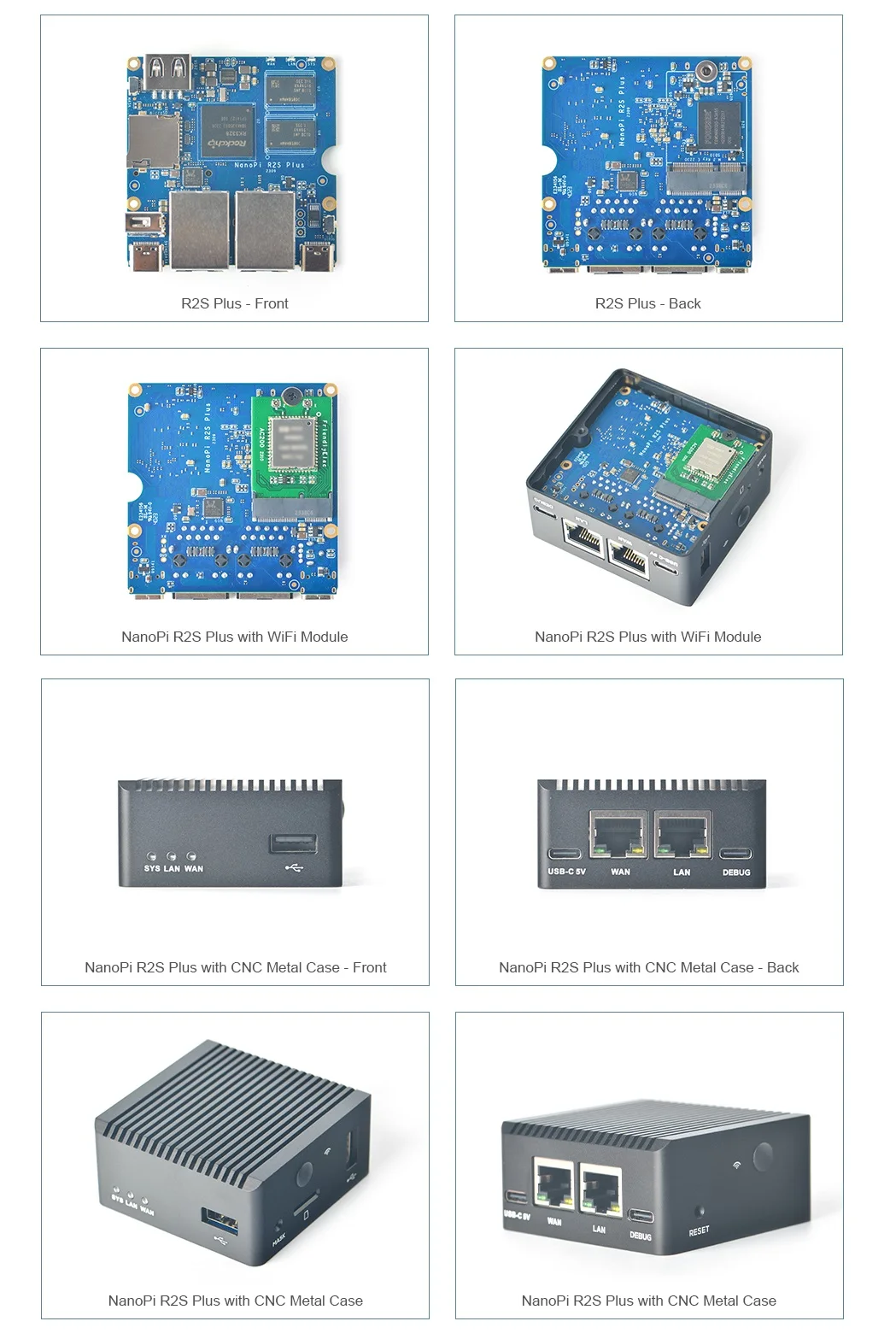

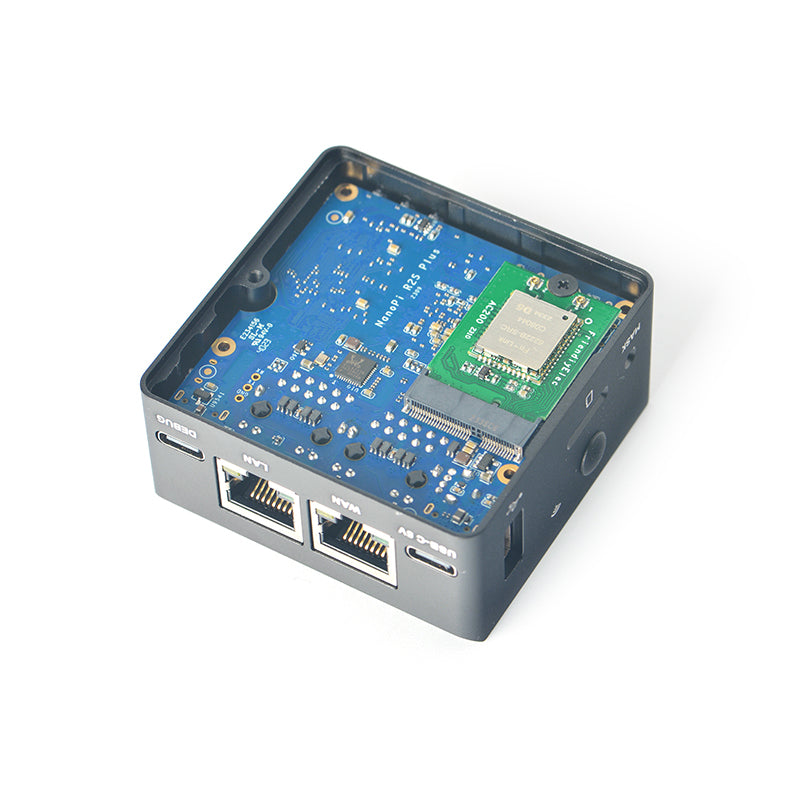

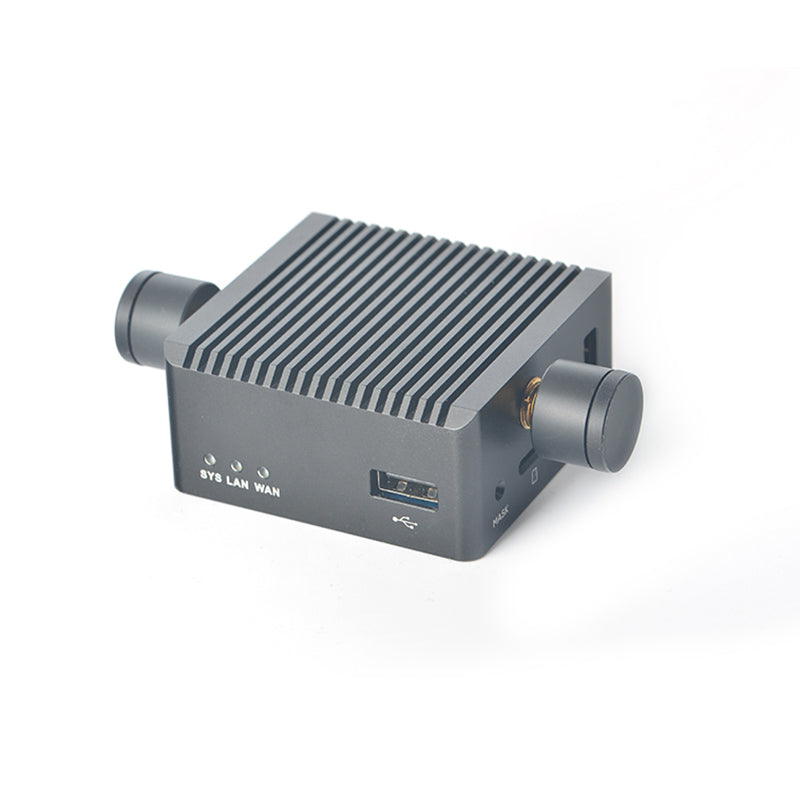

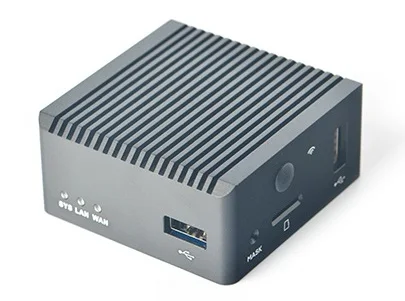

Product Pictures

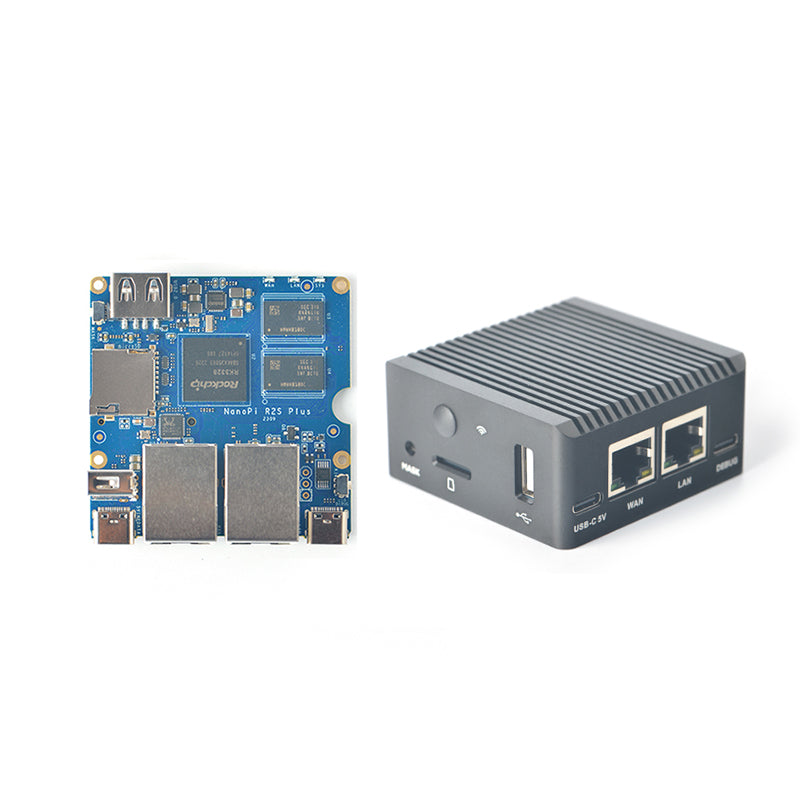

Packing List

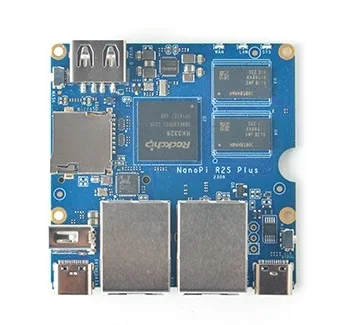

Option 1: NanoPi R2S Plus Bare Board

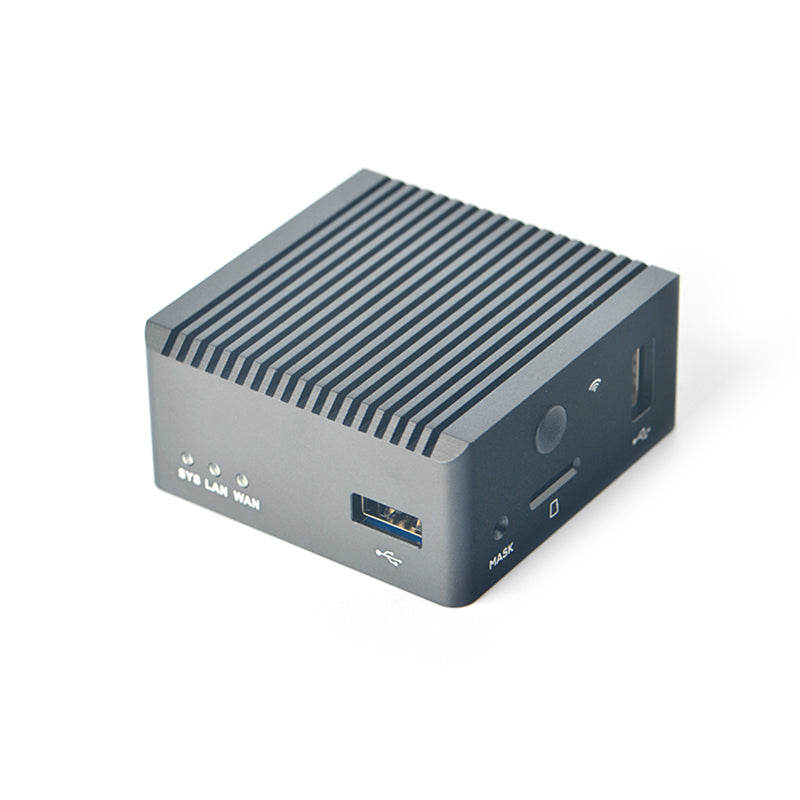

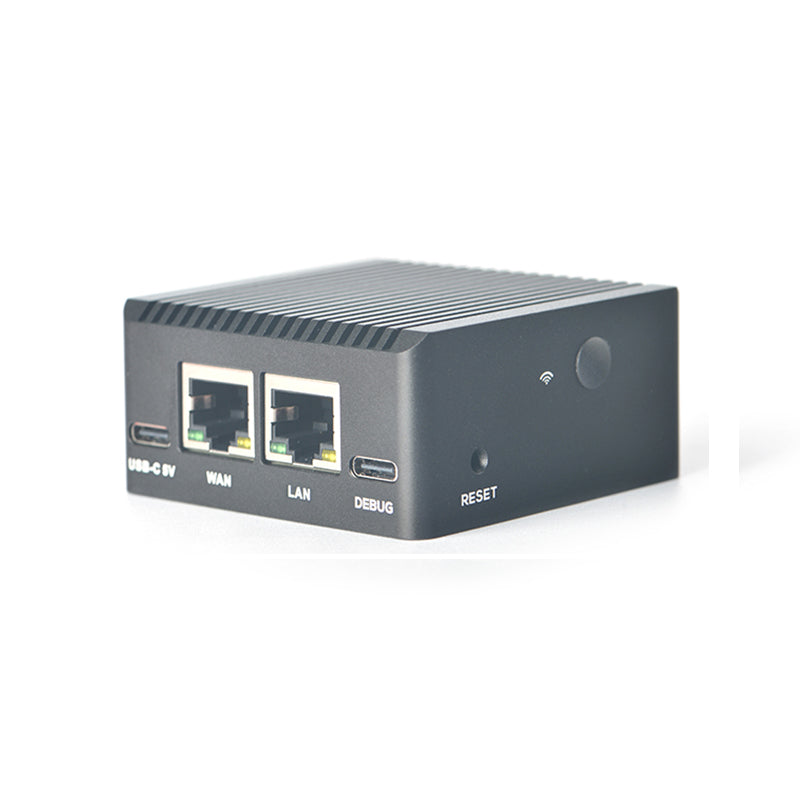

Option 2: NanoPi R2S Plus with Metal Case
