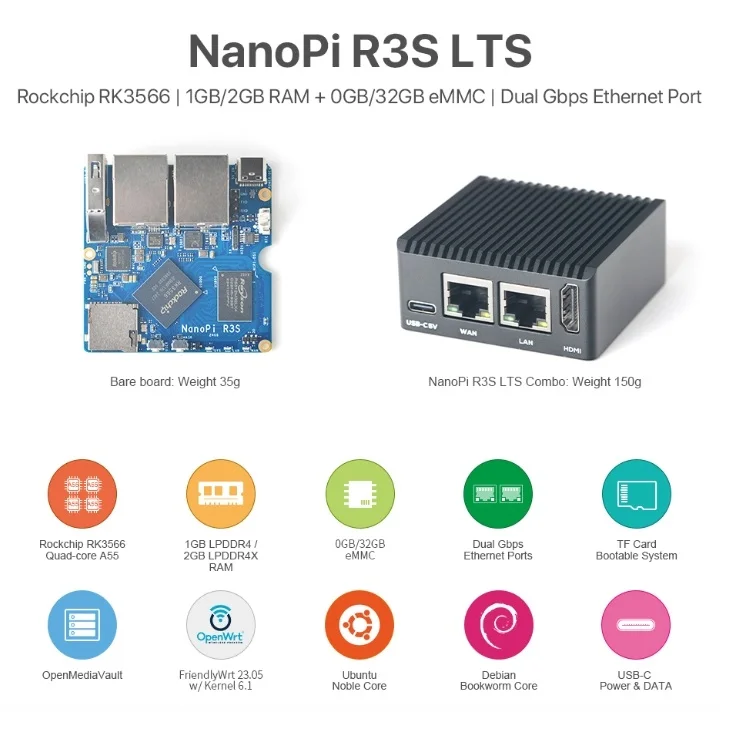

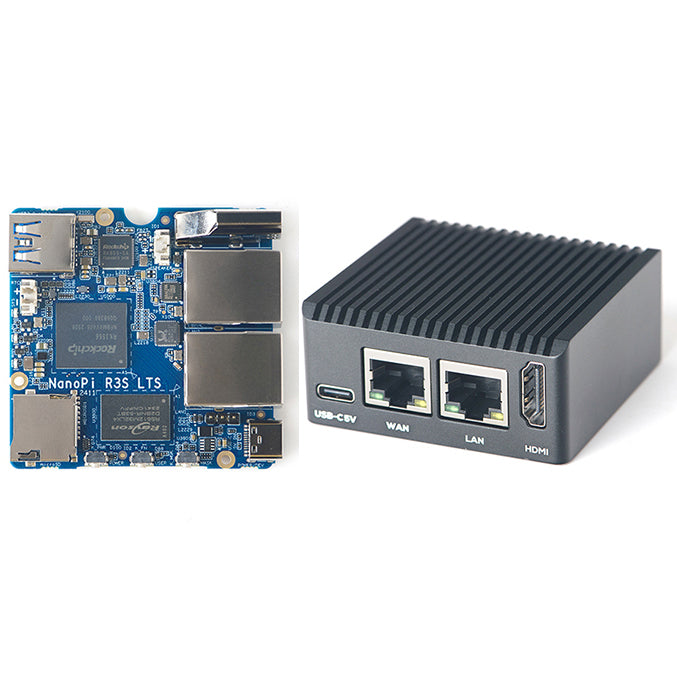

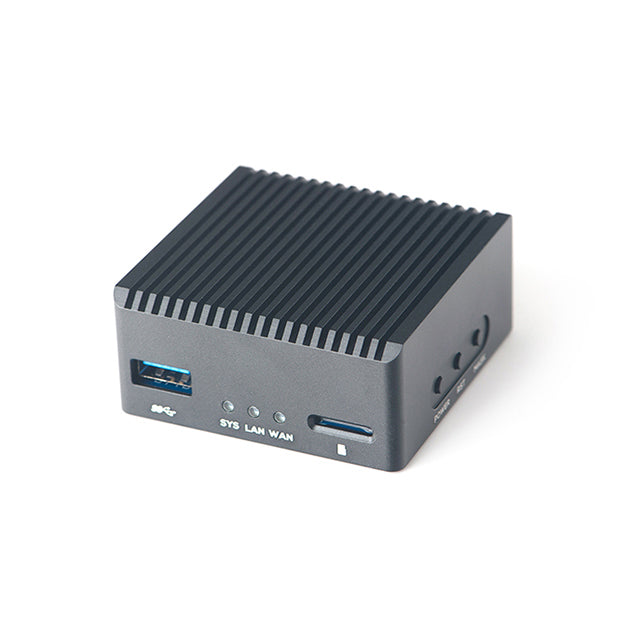

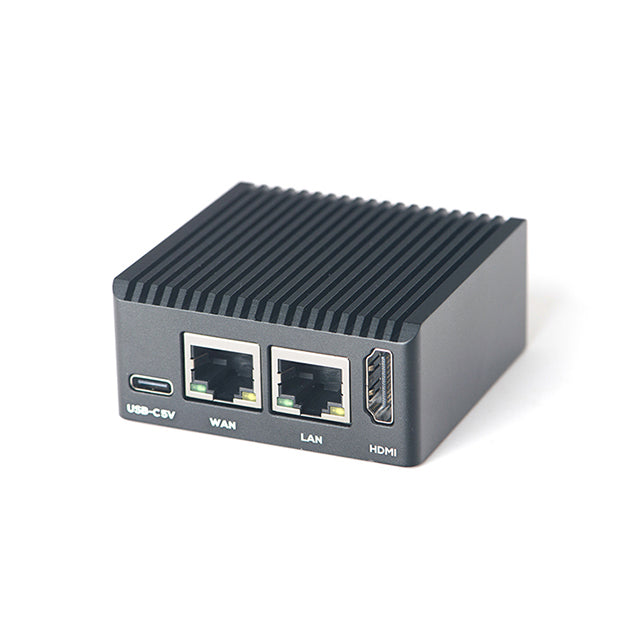

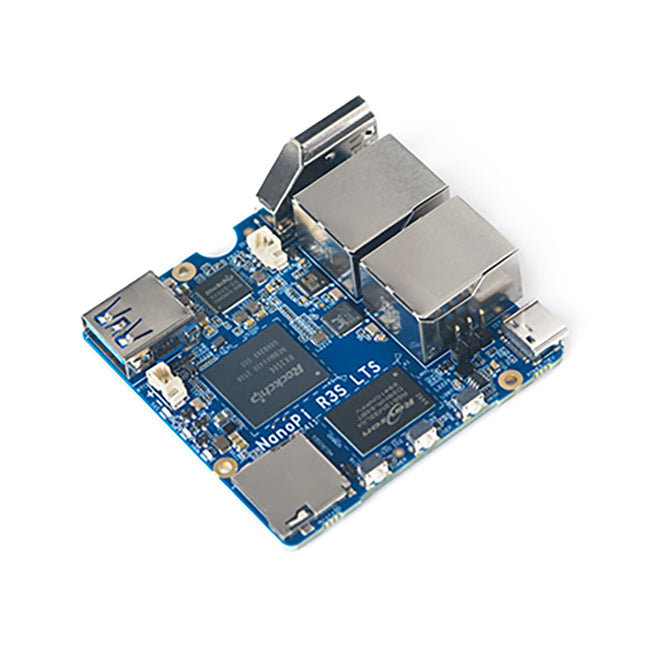

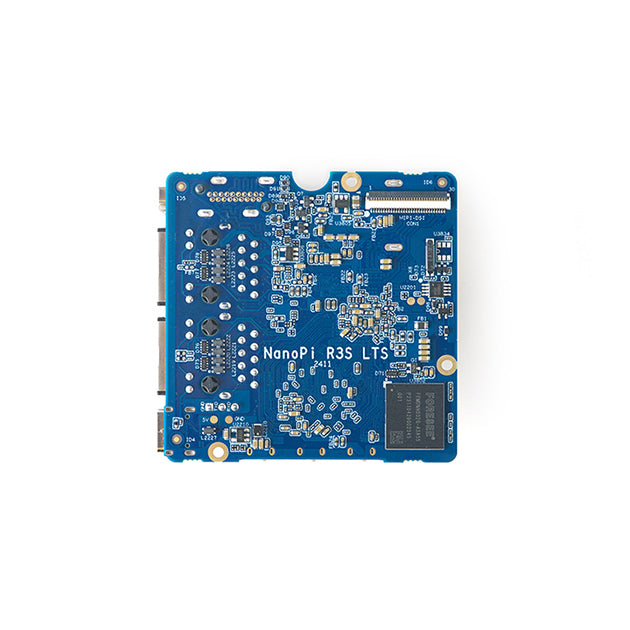

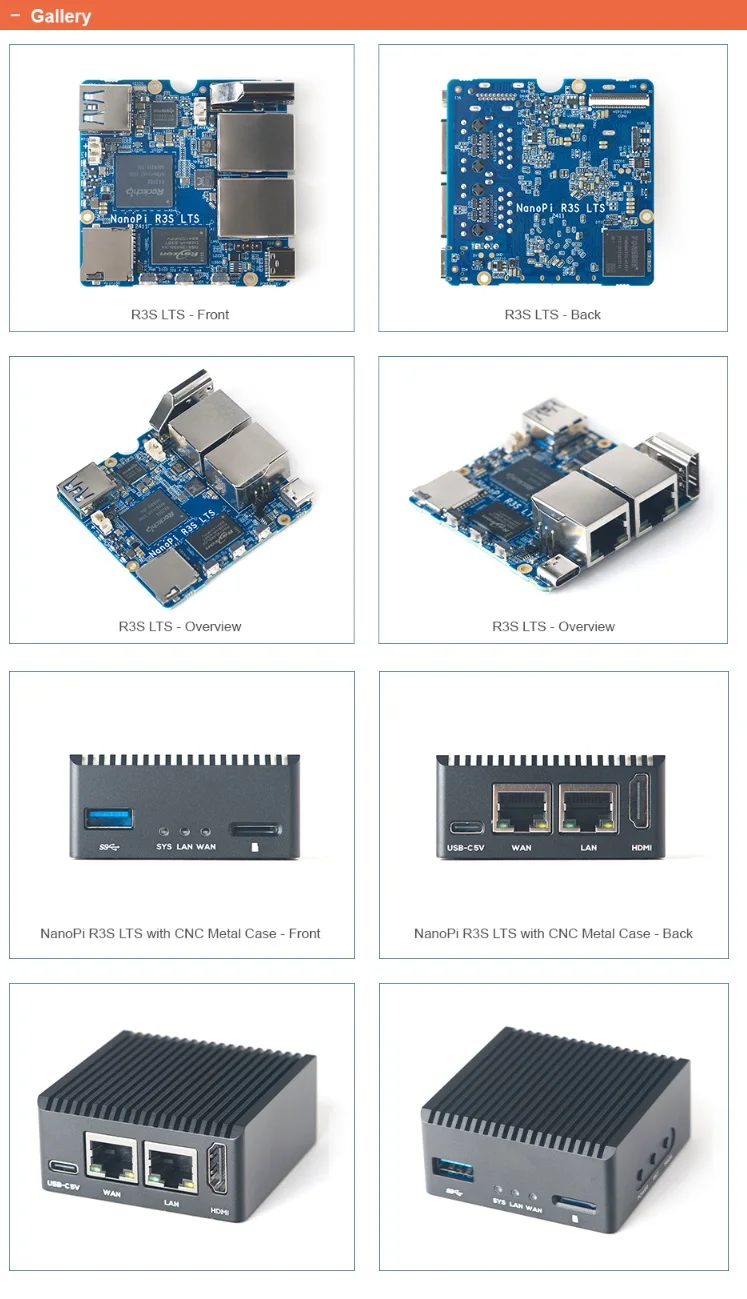

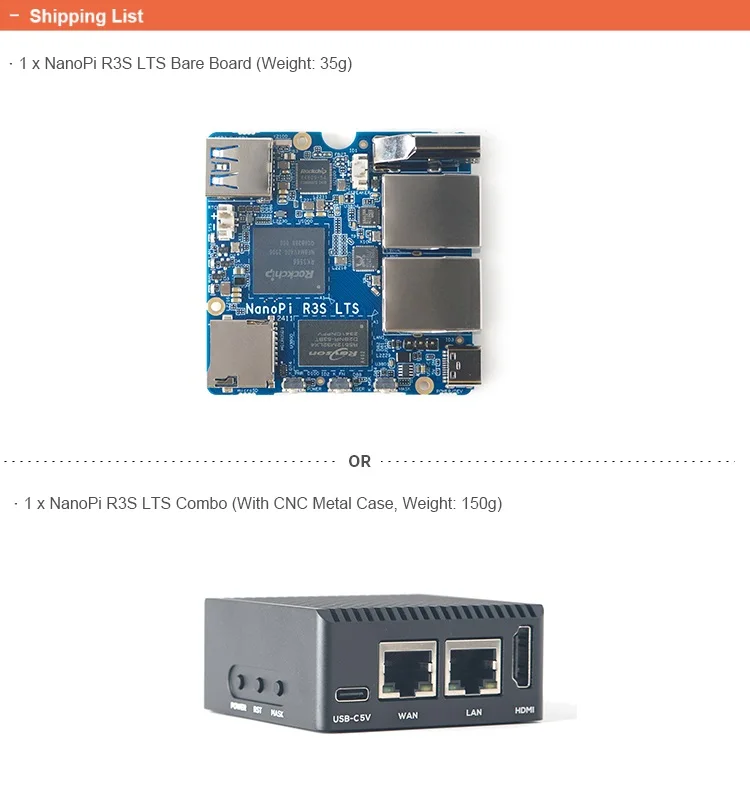

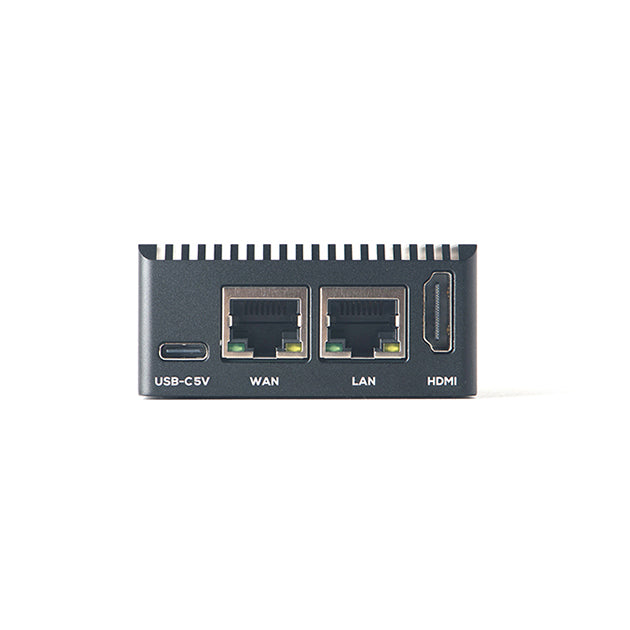

NanoPi R3S LTS Rockchip RK3566 Open-Source Dual Gigabit Ethernet with 2GB RAM Development Board for Smart Home

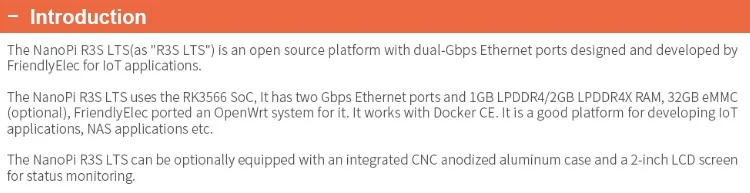

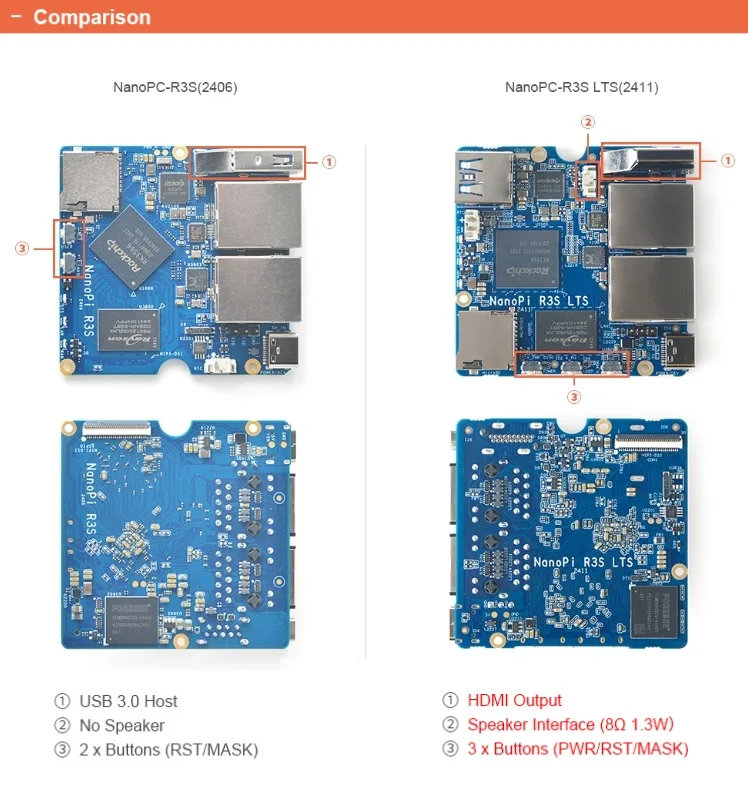

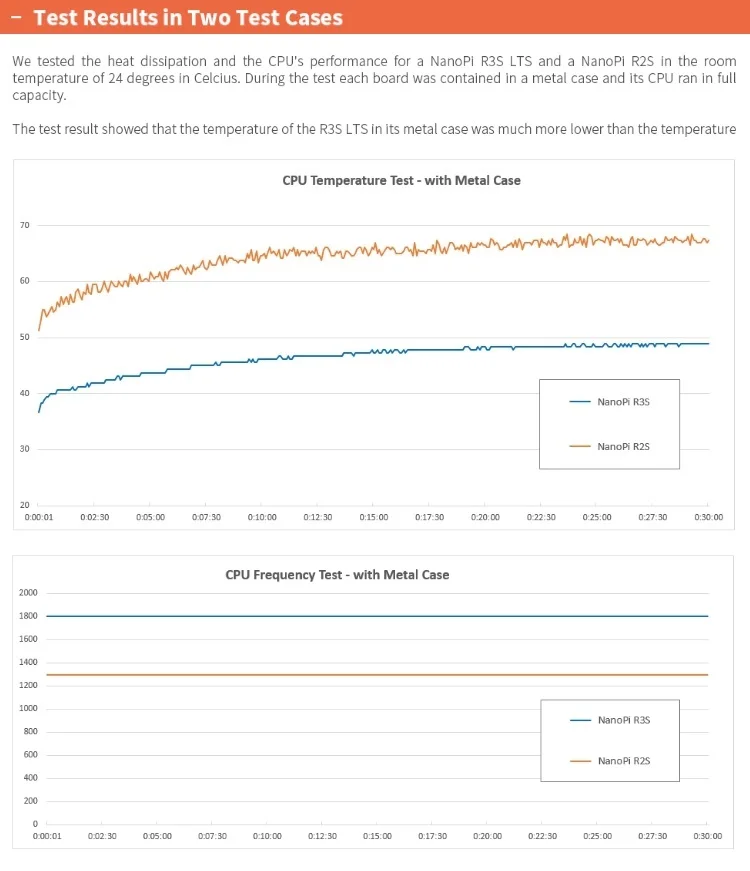

Product Introduction
|

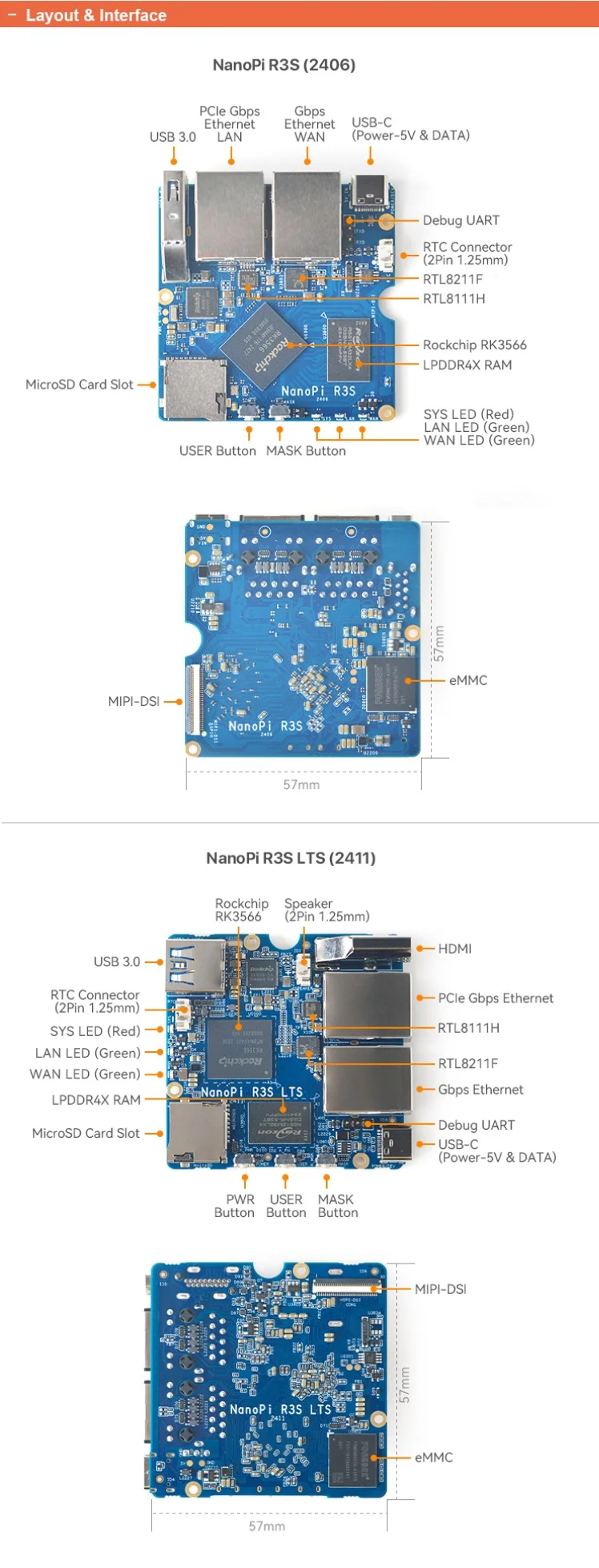

Hardware Specification
|
|
|

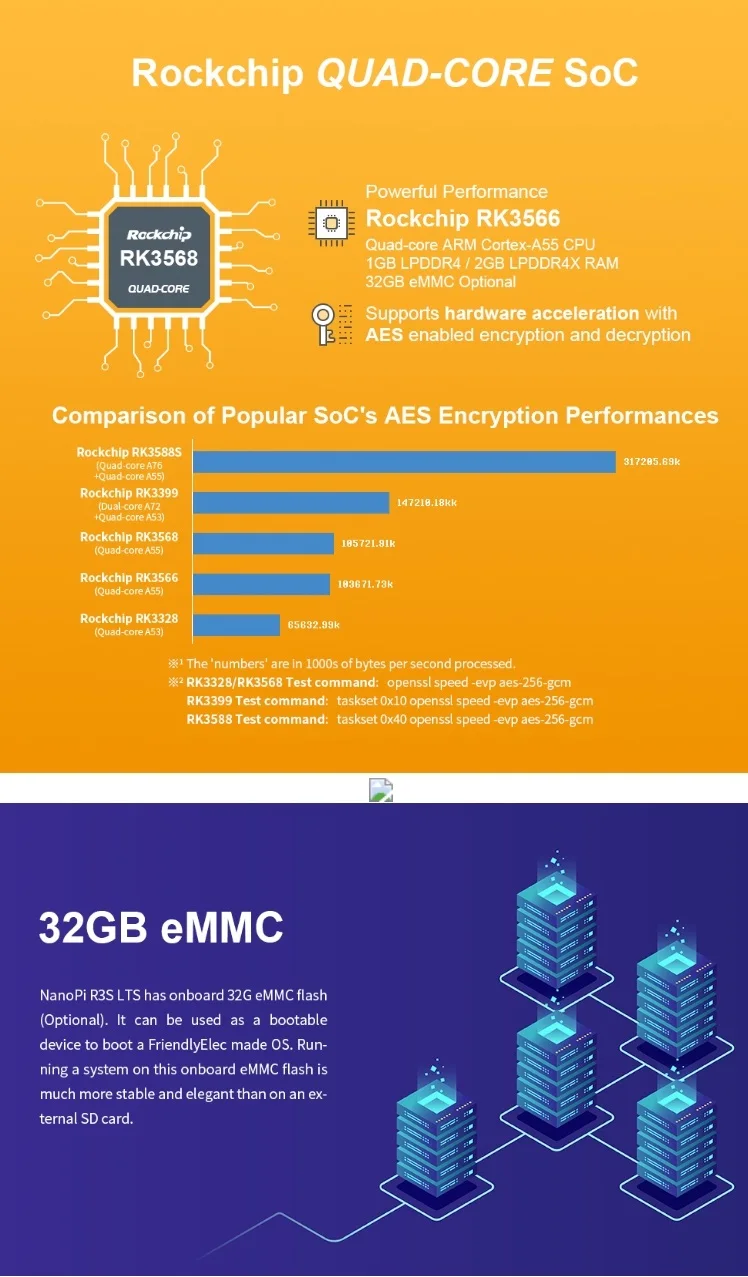

CPU
|
Model: Rockchip RK3566
Number of Cores: Quad-core Cortex-A55 Frequency:4 x Cortex-A55 up to 1.8GHZ |
|
NPU
|
Support 1T
|
|
Memory
|
RAM:1GB/2GB LPDDR4/LPDDR4X
|
|
Storage
|
Mi cro SD Slot: support UHS-I(SDR104)
Flash:0GB/32GB eMMC |
|

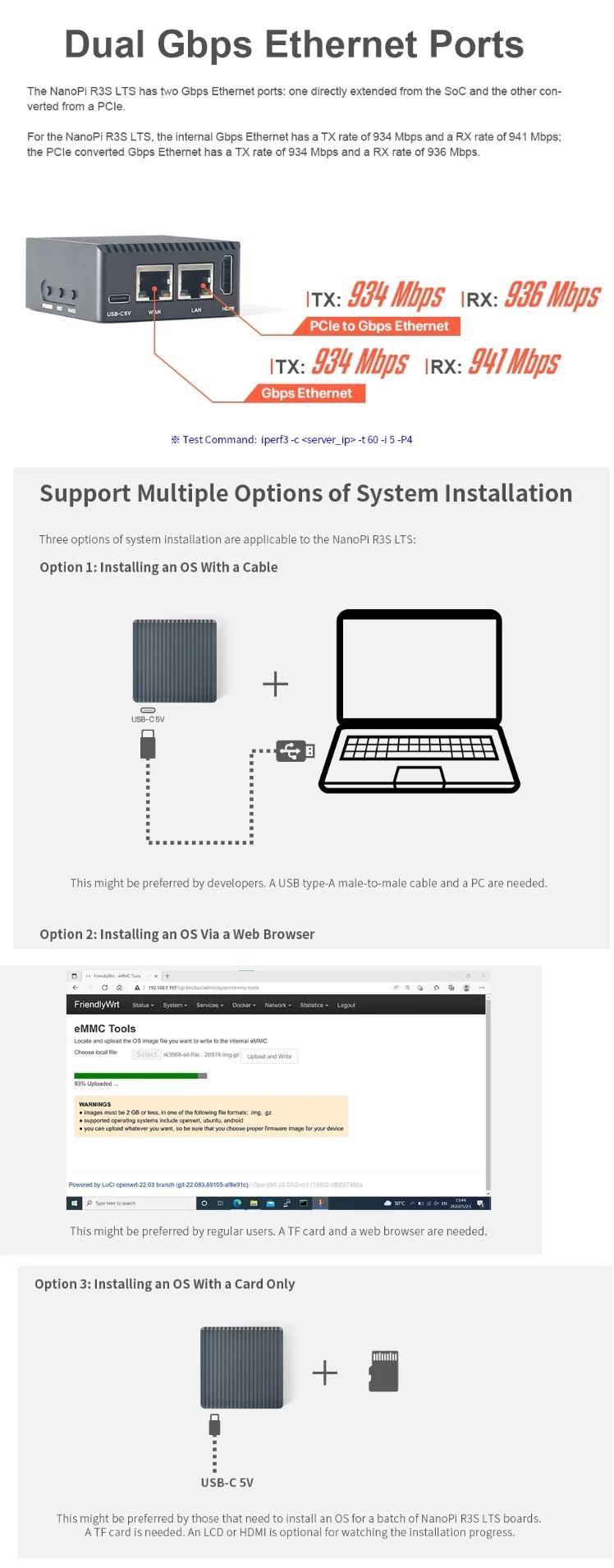

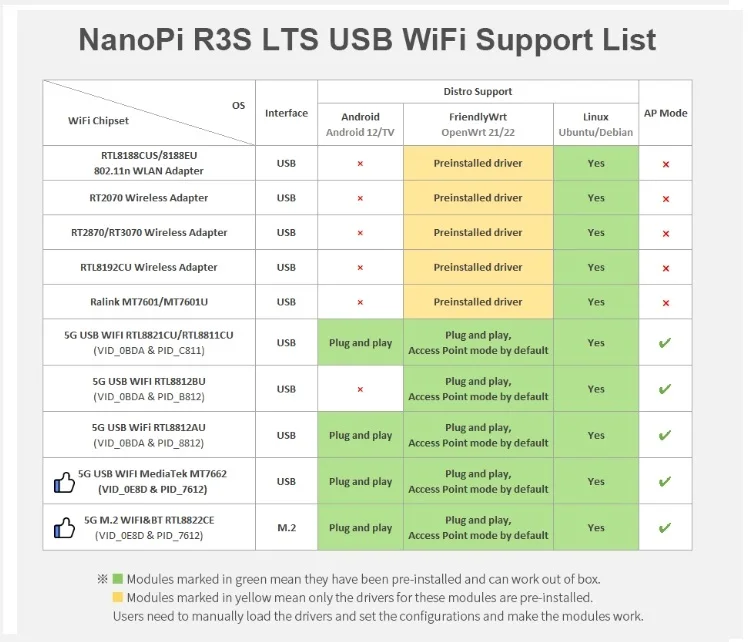

Connectivity
|
Etheret:
Native Gigabit Ethernet, RTL8211F chip
PCle Gigabit Ethernet. RTL8111H chip |
|
Video Output
|
MMIP|-DSl: 30-Pin FPC connector
H D M I 2.0 Type A
|
|
Aduio
|
Speaker connector
|
|
USB
|
USB 3.0: USB 3.2 Gen 1 Type-A
USB-C: Power(5V) & DATA
|
|
Pin-header
|
Debug: Debug UART, 3 Pin 2.54mm header, 3.3V level. 1500000bps
|
|
LED
|
SYS LED(Red)
WAN LED(Green)
LAN LED(Green) |
|
Button
|

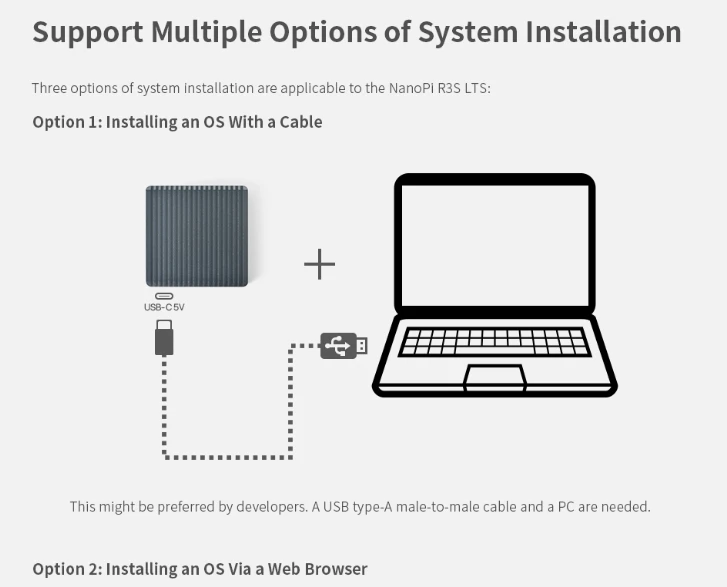

MASK Button for eMMC flashing via USB-C
User Button
Power Button
|
|
Others
|
RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Working Temperature: 0'C to 70°C |
|
Power
|
USB-C,5V/2Ainput
|
|
OS/Software
|
|
|
OS Support
|
Alpine Linux
Buildroot
Debian 12 Core
Debian 11 Desktop
FriencdlyCore 20.04
FriendlyWrt 21.02
FriendlyWrt 23.05
FriendlyWrt 24.10
OpenMediaVault Proxmox VE
Ubuntu 20.04 Desktop
Ubuntu 24.04 Core
|
|
Kernel version
|
Linux-6.1-LTS
U-boot-2017.09 |
|

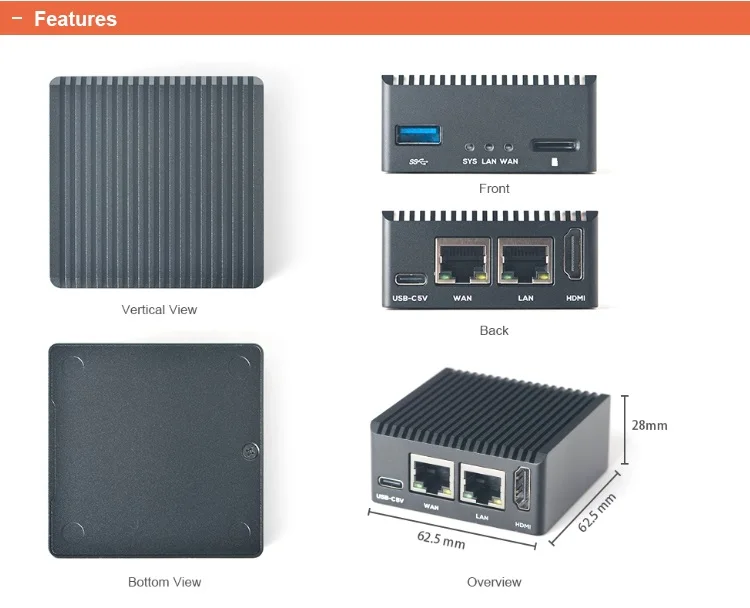

Dimension
|
|
|
PCB
|
8 Layer
|
|
Weight
|
30g(without Case)/150g(with Case)
|
|
Dimension
|
57 x 57 x 1.2mm (without Case)/61.5 x 61.5 x 25mm (with Case)
|
