Pixy 2 CMUcam5 Image Sensor Open-Source Image Recognition Sensor for Multi-Object Image Color Recognition and Line Tracking
Product Introduction
Note: Please don't tighten the camera, or the chip will be damaged
If you need an AI Machine Vision Sensor with more functions, we recommend Gravity: HUSKYLENS.
If you need an AI Machine Vision Sensor with more functions, we recommend Gravity: HUSKYLENS.
Pixy2 is smaller, faster and more capable than the original Pixy. Like its predecessor, Pixy2 can learn to detect objects that you teach it, just by pressing a button. Additionally, Pixy2 has new algorithms that detect and track lines for use with
line-following robots. The new algorithms can detect intersections and “road signs” as well. The road signs can tell your robot what to do, such as turn left, turn right, slow down, etc. And Pixy2 does all of this at 60 frames-per-second, so your robot can be fast, too.
Features:
* Pixy2 detects lines, intersections and small barcodes, intended for line-following robots
* Improved framerate – 60 frames-per-second
* Tracking algorithms have been added to color-based object detection
* Tracking algorithms have been added to color-based object detection
* Improved and simplified libraries for Ard, Raspberry Pi and other controllers
* Integrated light source
Paraments:
|

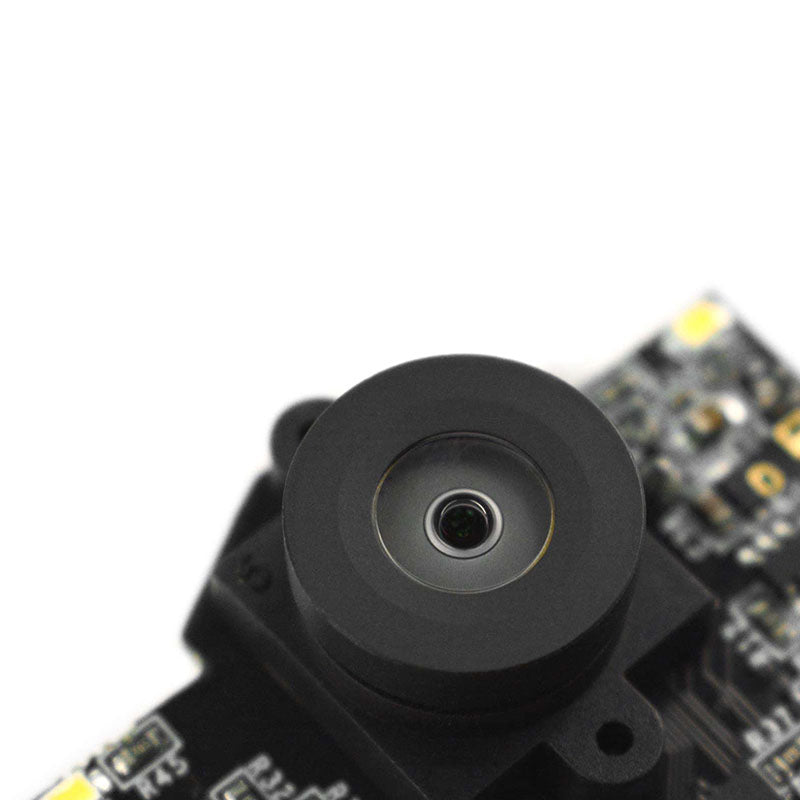

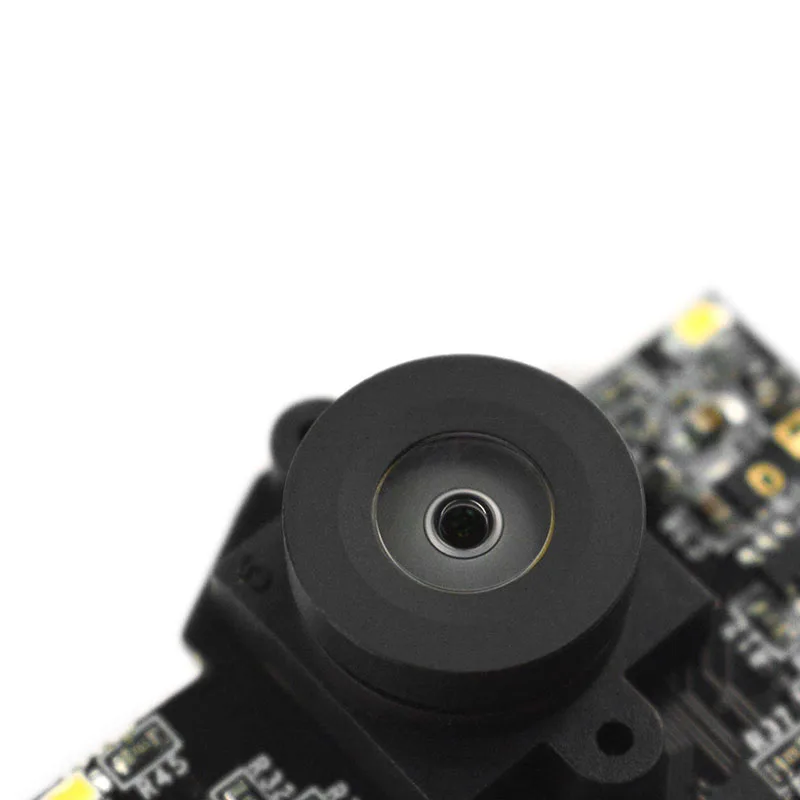

Lens type: Standard M12
|
|
Processor: NXP LPC4330, 204 MHz, dual core
|
|
Image sensor: Aptina MT9M114, 1296×976 resolution with integrated image flow processor
|
|
Lens field-of-view: 60 degrees horizontal, 40 degrees vertical
|
|
Power consumption: 140 mA typical
|
|
Power input: USB input (5V) or unregulated input (6V to 10V)
|
|
RAM: 264K bytes
|
|
RAM: 264K bytes
|
|
Available data outputs: UART serial, SPI, I2C, USB, digital, analog
|
|

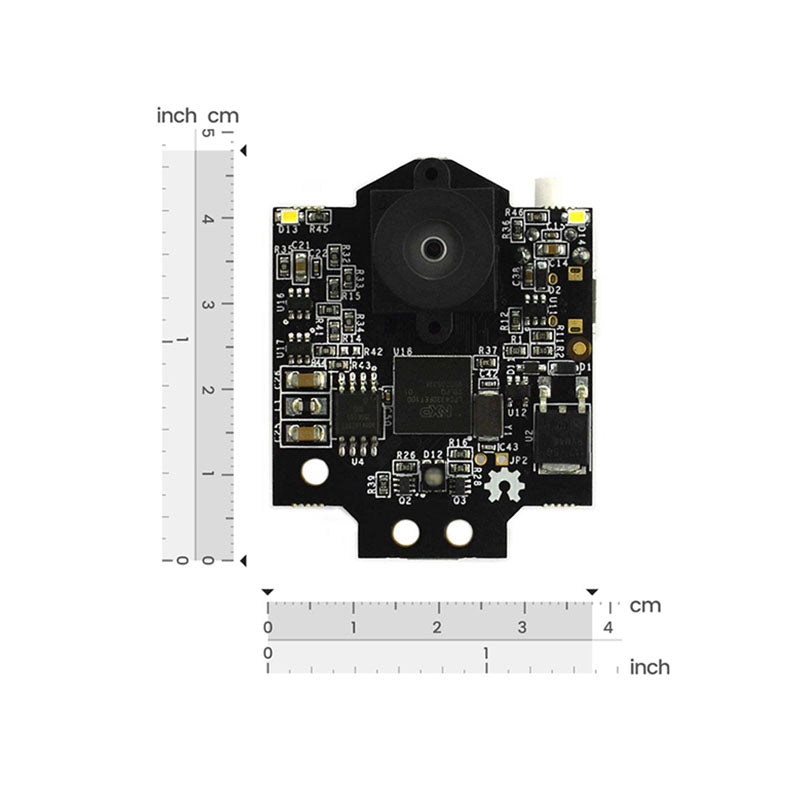

Dimensions:1.5” x 1.65” x 0.6”
|
|
Weight: 10 grams
|
|
Integrated light source, approximately 20 lumens
|

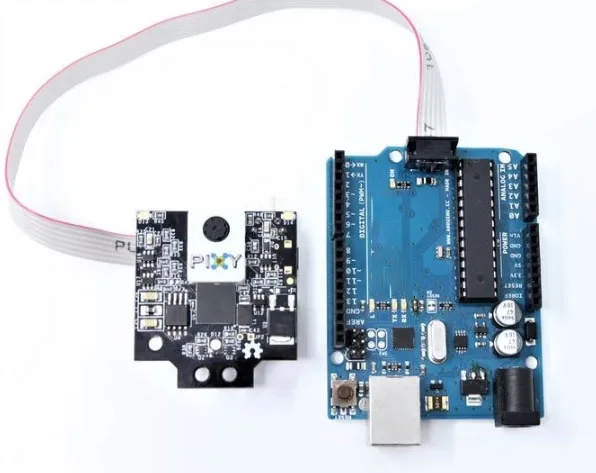

Connect directly to Ard or Raspberry Pi
No need to futz around with tiny wires — Pixy2 comes with a special cable to plug directly into an Ard and a USB cable to plug into a Raspberry Pi, so you can get started quickly. No Ard or Raspberry Pi? No problem! Pixy2 has several interfaces (SPI, I2C, UART, and USB) and simple communications, so you get your chosen controller talking to Pixy2 in short order.

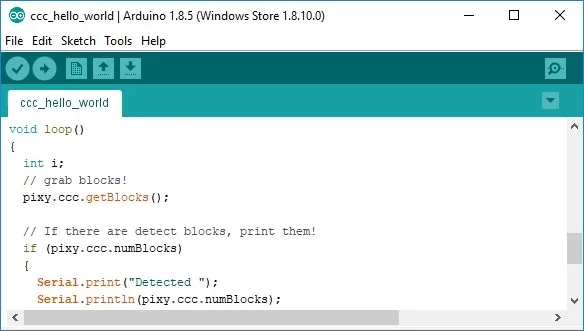

Simplify your programming
To get you up and running as fast as possible, we offer software libraries for Ard and Raspberry Pi. Pixy2 makes your programs simpler by only sending the data you’re looking for. For example, if you teach Pixy2 a purple object, you will only receive data (X-Y coordinates, size, and unique ID) about the purple objects that Pixy2 detects.

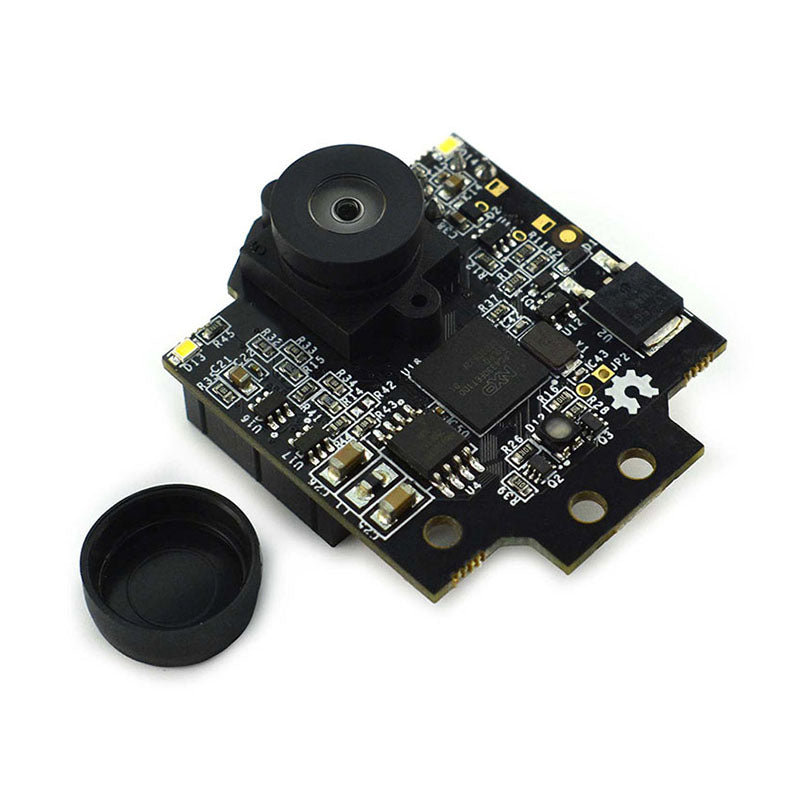

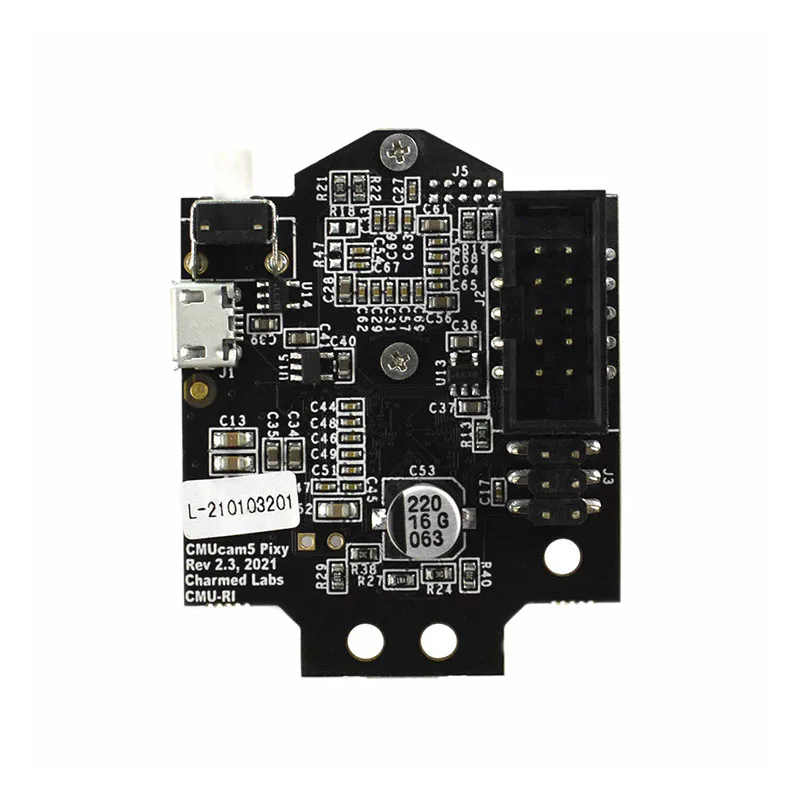

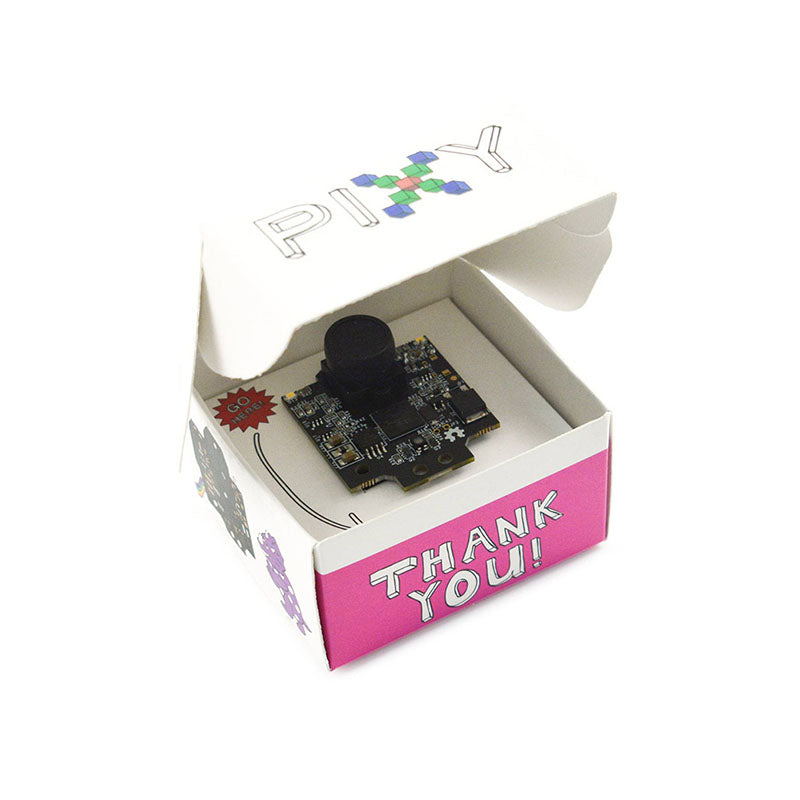

Product Pictures

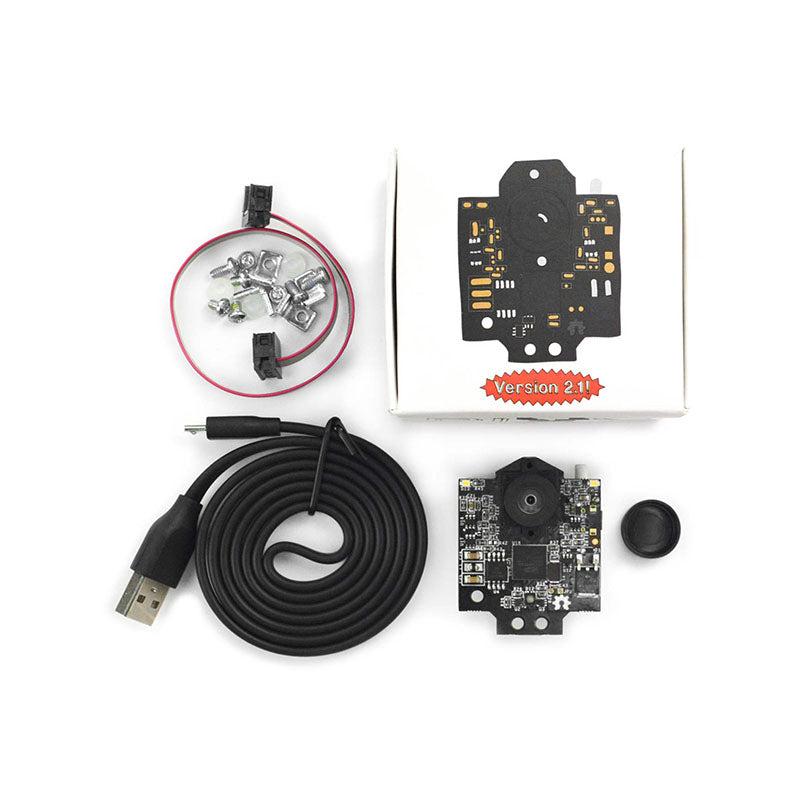

Packing List
Pixy 2 CMUcam5 Image Sensor x1
FC-10P to FC-6P Cable x1
Screw Package x1
